Automatic Edge Banding Machine 110V |
|
|
|
|
|
|
|
The
multi-function sealing and repairing machine is mainly used for sealing
the edge of the plate section. It has compact structure, reasonable
layout, beautiful appearance, with curved edge sealing, double-sided
gluing, automatic tape breaking, trim neatly head and tail, automatic
plate feeding, upper and lower trimming, double-sided polishing and
other functions.
|
|
Product parameter: |
|
Voltage: 110V
Edge speed: 0-6m/min
Self-propelled motor power: 60W
Conveyor motor power: 25W
Polishing motor power: 400W
Edge cutting machine power: 800W
Edge thickness: 0.8-1.5 millimeters
Edge height: 12-40mm
Heating time: 5-15min
Adhesive volume: 600ml
Trimming method: Double-sided trimming
Adhesion method: Double-sided adhesive coating

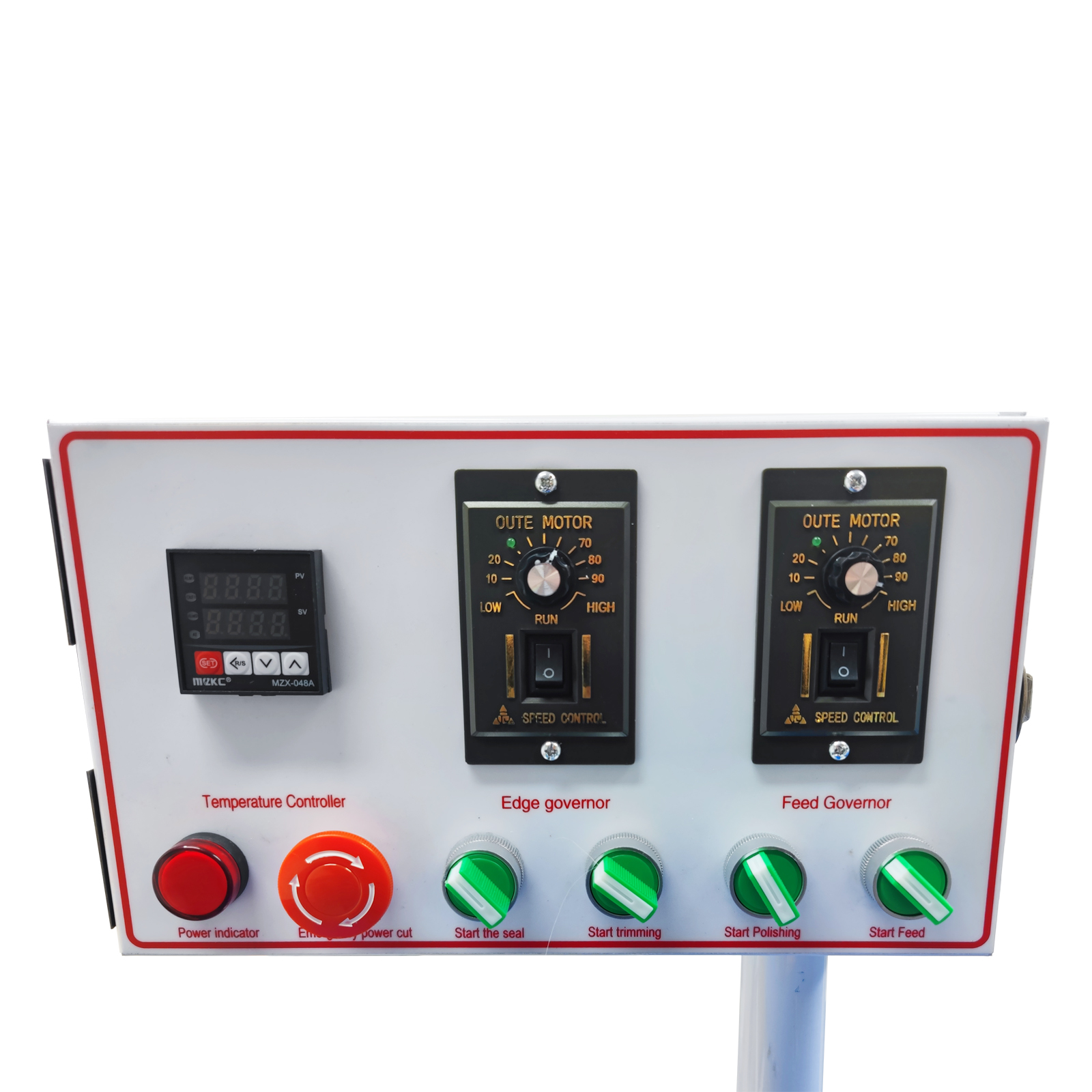

Control mode: Intelligent temperature control
Disconnection mode: Automatic strip breaking |
 |
|
Features： |
|
1. First of all, it can be directly applied to the plate straight line
and arc irregular border sealing operation, and the portable edge
sealing machine is also suitable for a variety of different materials of
the edge sealing tape.
|
|
2. Multi-functional microcomputer sealing machine through the special
structural design, can make the plate with the edge sealing machine tape
at the same time, to ensure that the paste is more uniform, more firm,
the edge sealing effect is more perfect. The special design of the glue
pot increases the volume of the glue pot and greatly reduces the
preheating time, which can ensure sufficient melting amount.
|
|
3. Manual feeding coupled with manual control and motorized roller
pressure mode can accurately and quickly carry out the edge sealing
process, each part of the work design is strict and orderly, no
degumming overflow phenomenon.
|
|
|
|
Scope of use： |
|
Suitable
for side sealing: flexible melamine-impregnated paper, wood veneer,
plastic and other furniture edge sealing materials, the rubber surface
must be smooth. |
|
