Electric PVC Belt
Climbing Conveyor |
 |
Climbing conveyor is a large inclination
conveying equipment, with the general belt
conveyor simple structure, reliable operation, easy maintenance and
other
advantages, with large inclination conveying, compact structure, less
land and so
on. |
|

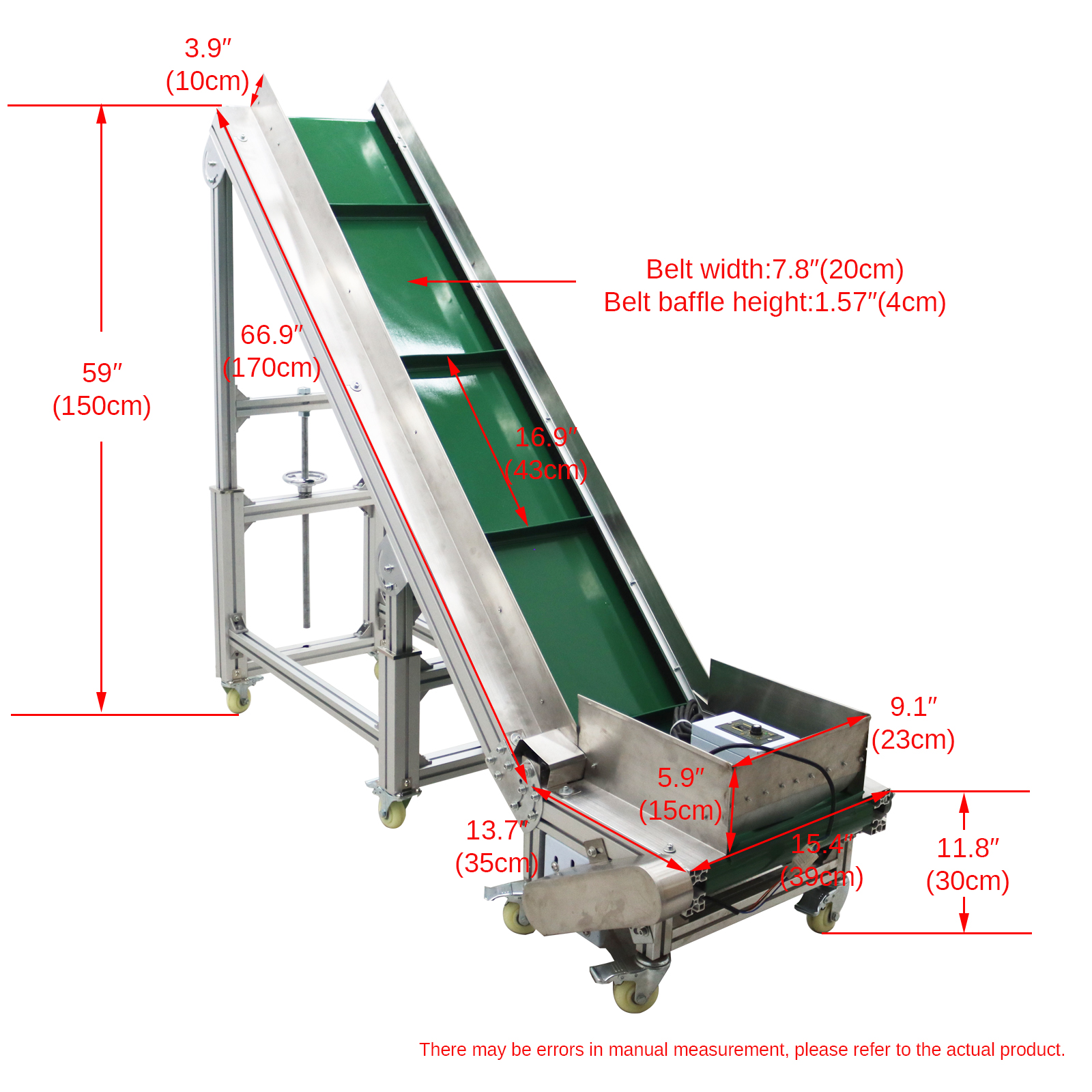

Parameter |
|
Motor Power |
250W |
|
Rated voltage |
110V/60Hz |
|
Length |
78.7inch(200cm) |
|
Available Width |
7.8inch(20cm) |
|
Height(highest) |
59inch(150cm) |
|
Height(minimum) |
11.8inch(30cm) |
|
Speed |
Adjustable from 2 to 10 meters
per minute |
|
Slope length |
66.9inch(170cm) |
|
Platform length |
11.8inch(30cm) |
|
Material |
Aluminum +PVC |
|
Usage |
Packing,shipping etc. |
|
 |
|
Detail |
 |
 |
|
Speed regulator
Adjustable 2 to 10 meters per minute,speed
can be
adjusted at any time. |
PVC belt
PVC conveyor belt is wear-resistant,
elastic and not
easy to deform.It is approximately 16.9 inches apart
and has a 1.5 inch high baffle for easy lifting and
transportation. |
 |
 |
|
High quality motor
250W High quality motor, stable operation,
long
service life. |
Guardrail
Guardrail is installed around the belt to
protect the
material from falling. |
 |
 |
|
Vientiane caster
Vientiane castors with brakes, easy to
move. |
Hairbrush
The brush installed on both sides of the
belt prevents
the material from falling and prevents dust from
entering the machine. |
|
Notice:
The machine can not run for a long time at a low speed, long time
running at low speed will heat up and
affect the service life of the motor, the recommended speed is more
than 5 m/min.
The adjustable handwheel on the support leg is only used for the
horizontal adjustment during installation,
and is not suitable for the adjustment of the overall height of the
machine. |
 |
|
Accessories List |
Host machine ×1
Support legs ×2
Crossbeams ×2
Side guardrails ×2
Feed guardrail ×1
Speed governor ×1
Installation screws (a set / several) |
|
Item Number: Electric PVC Belt Climbing
Conveyor 230494 |
|
You can make order with no worry.
Any concern just feel free to let us know, we'll reply in 24 hours in
normal condition.
Handling Time: Shipping is usually made in 1-3 business days after
payments cleared. Orders are processed from Monday-Friday; Not on the
weekends & public holidays.
Warranty: 6 months' warranty for the machines, not for the consumables.
We stand behind our products all the item, so even if your warranty
period has expired, you can still seek for service or technical support
from us
with low cost. |
