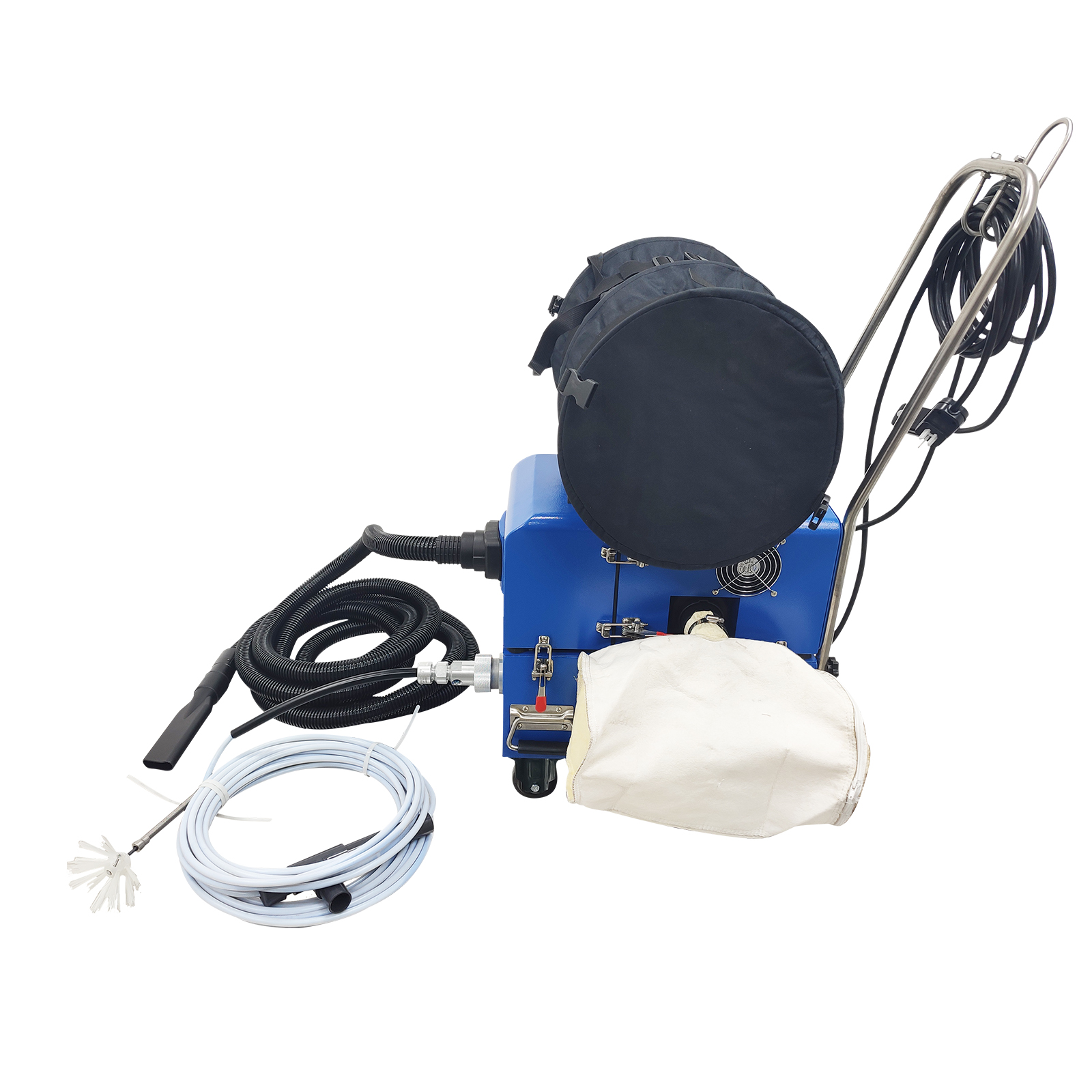

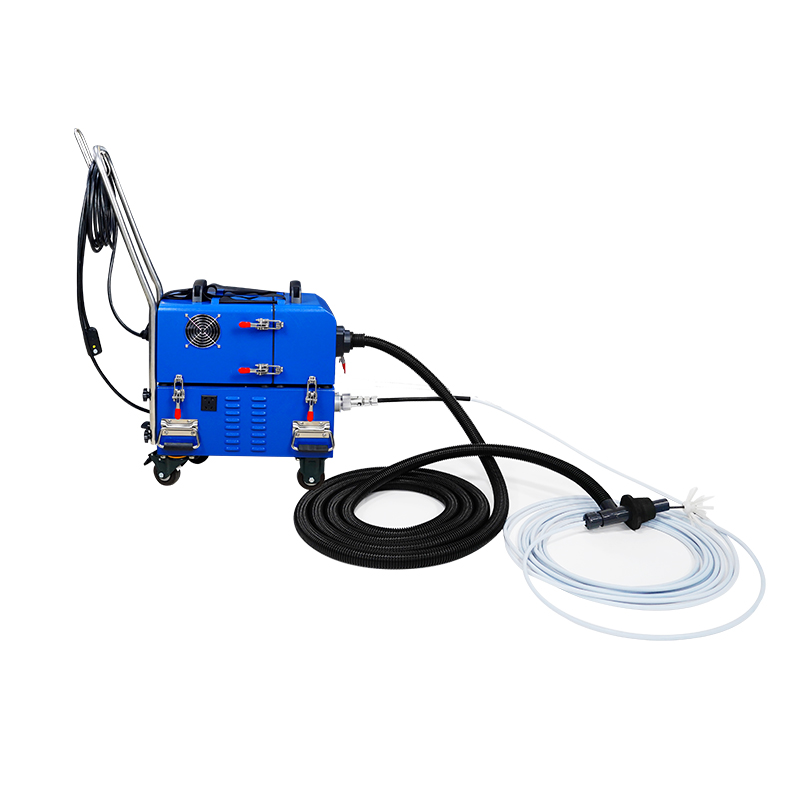

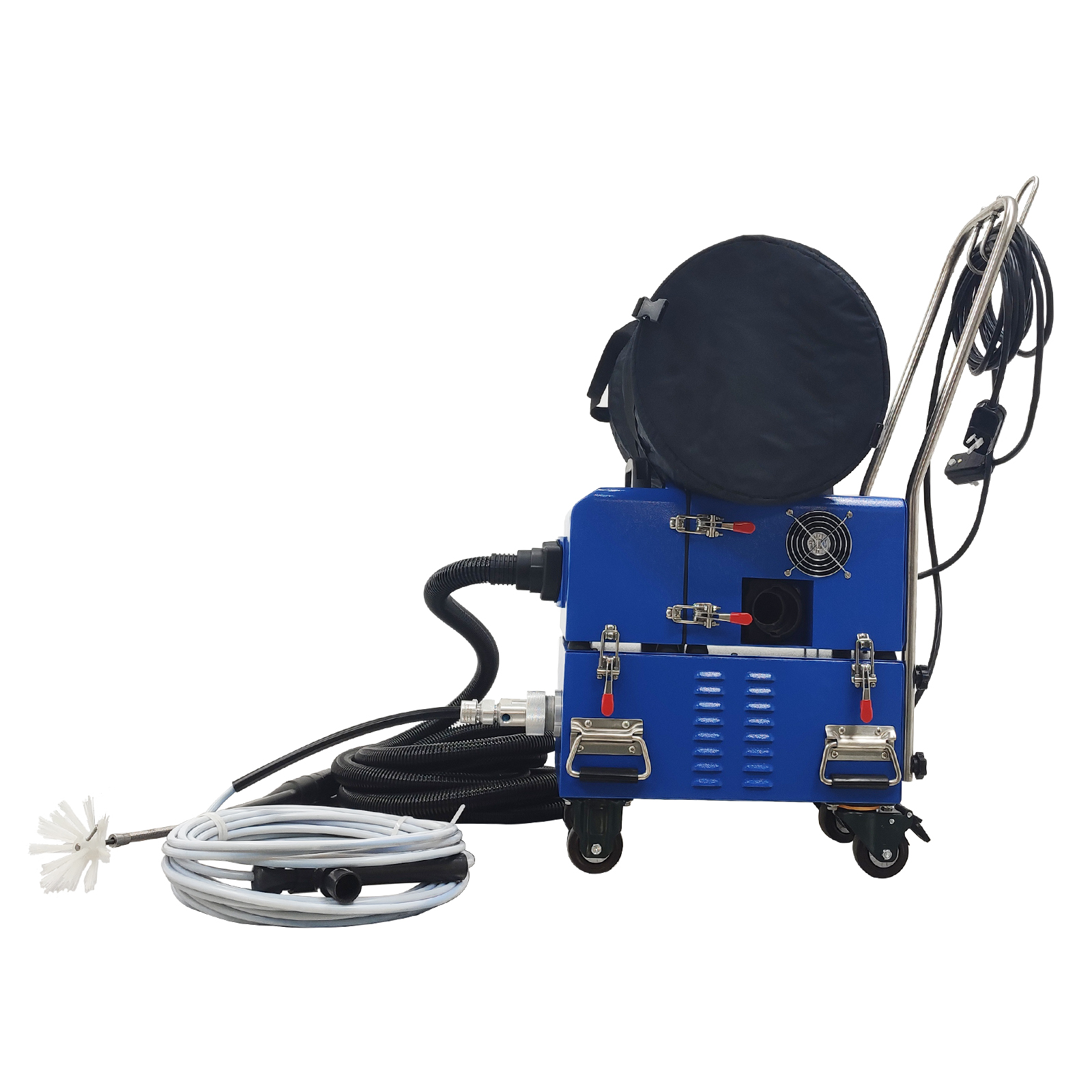

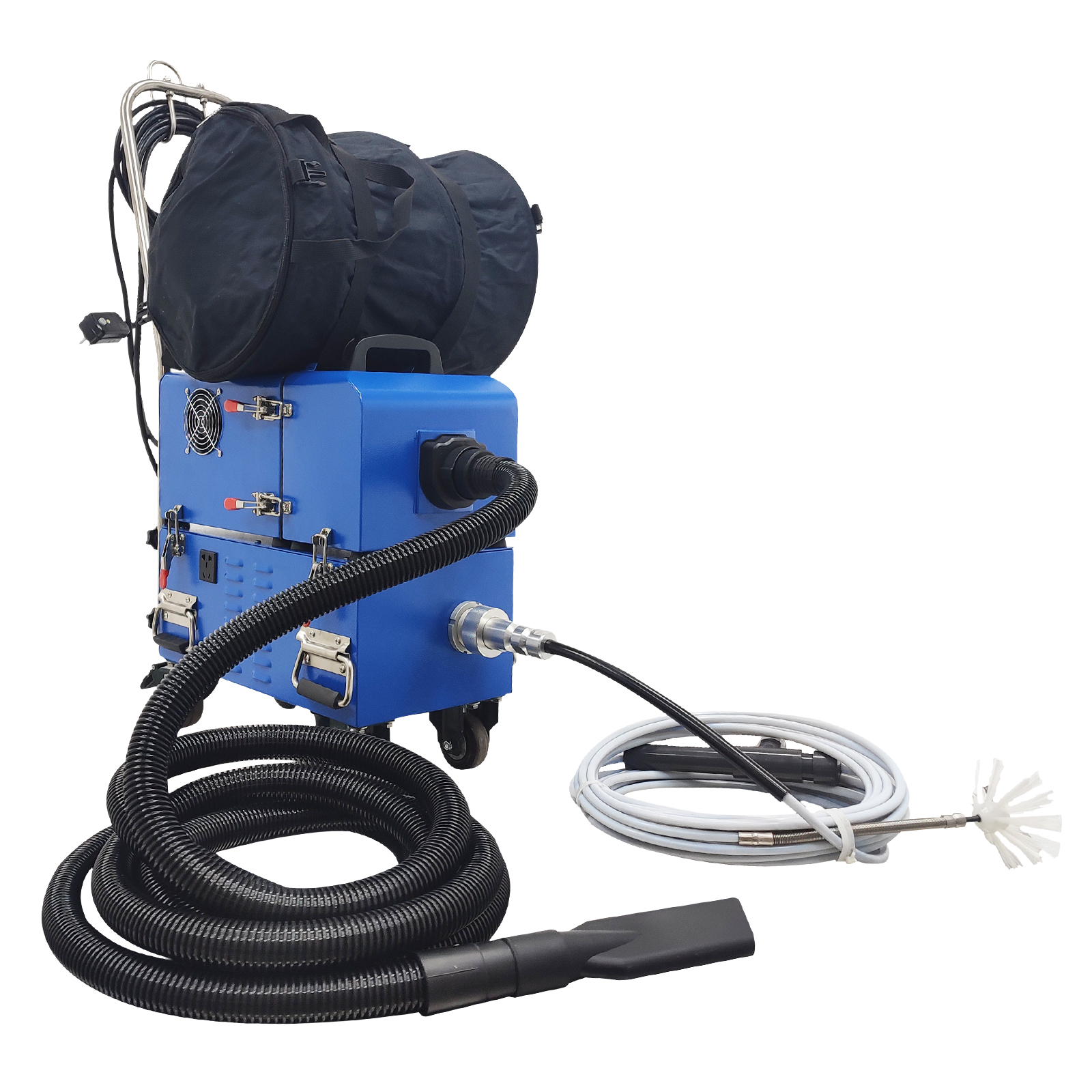

Air duct cleaning machine 220V
|
|
|
|
|
|
|
|
The air duct cleaning
machine is a special device for cleaning central air
conditioner pipes and is mainly used for cleaning dust and
dirt in the pipes away. The brush is driven to rotate
through a soft shaft to conduct dry cleaning on the pipes,
the machine works in cooperation with a high-power vacuum
cleaner to absorb away the dust and dirt on the inner walls
of the pipes, and therefore the purpose of cleaning the
inner walls of the pipes is achieved.
|
|
|
|
|
Parameters
|
Voltage: 220V (A transformer is given as a
present along with the product and can be used for both
household 110V and industrial 220V power.)
Power：1600W
Applicable pipe diameter：50-200mm
Length of the soft shaft：15 meters
Diameter of the soft shaft：6mm
Rotating speed：0-1400r/min (stepless speed regulation)
Air volume：1000m3/h

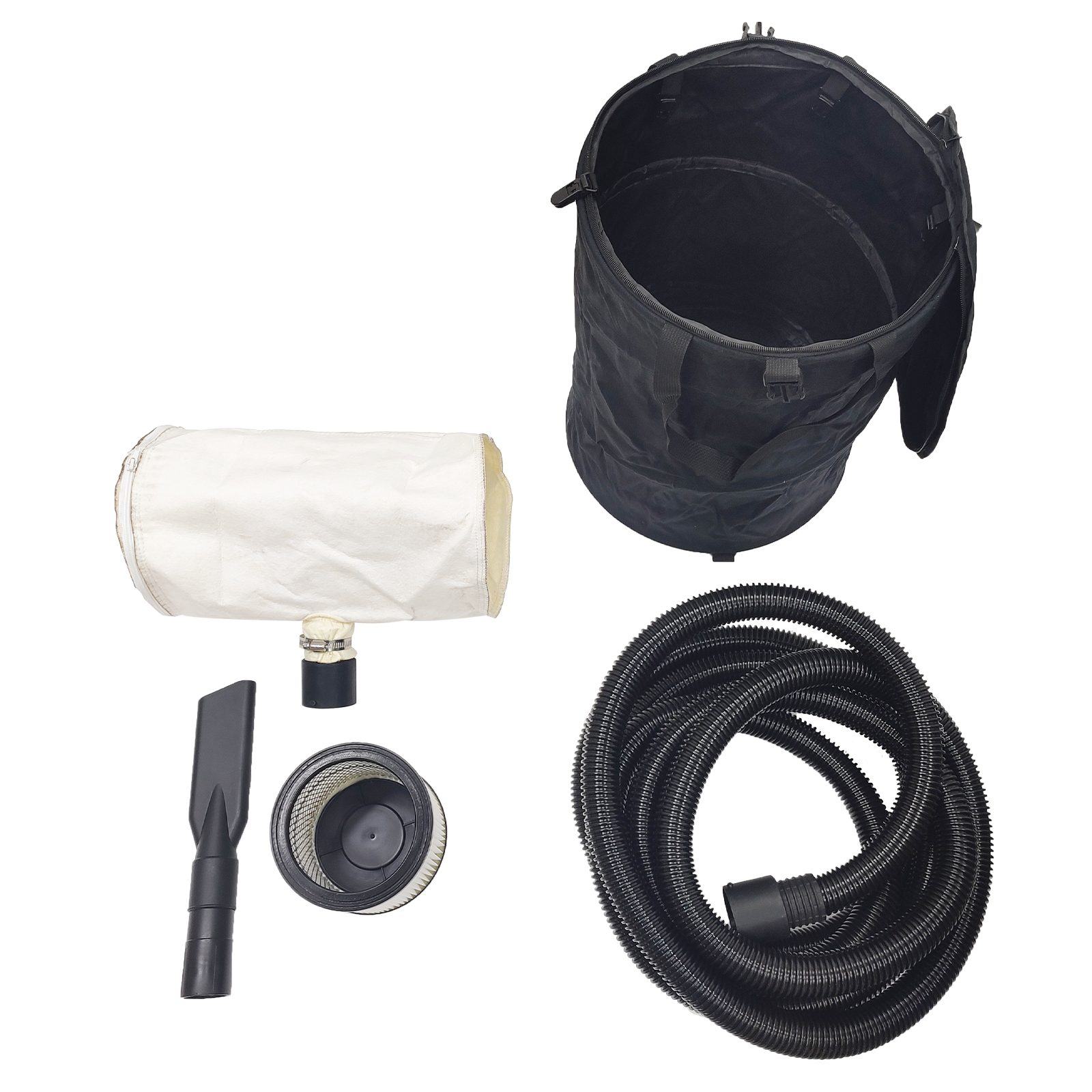

Length of the dust absorption pipe：6 meters
Material of the dust absorption pipe：EVA corrugated pipe

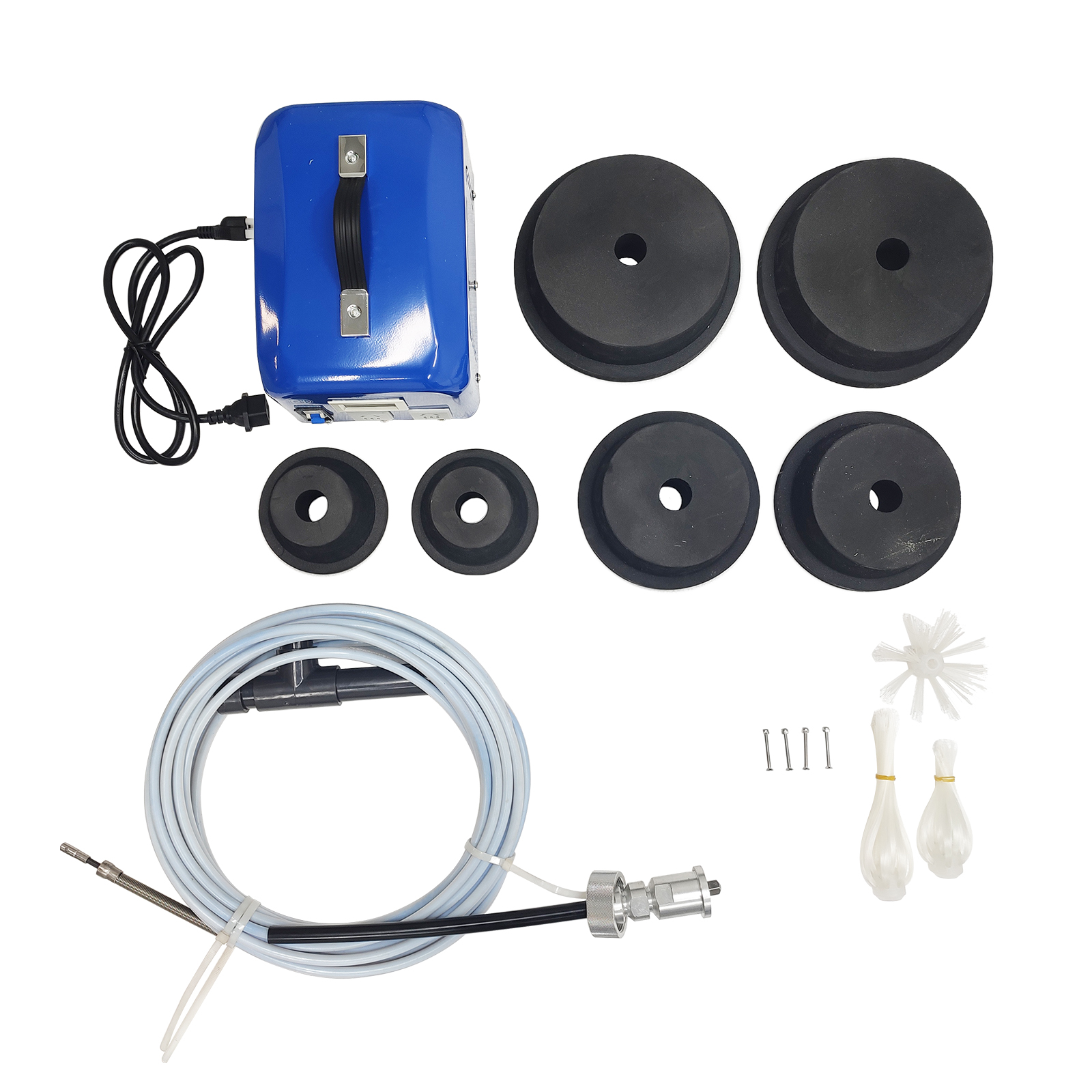

Pipe plug：3 pieces（110mm/150mm/20mm）
Brush：3 pieces（100mm/200mm/300mm）

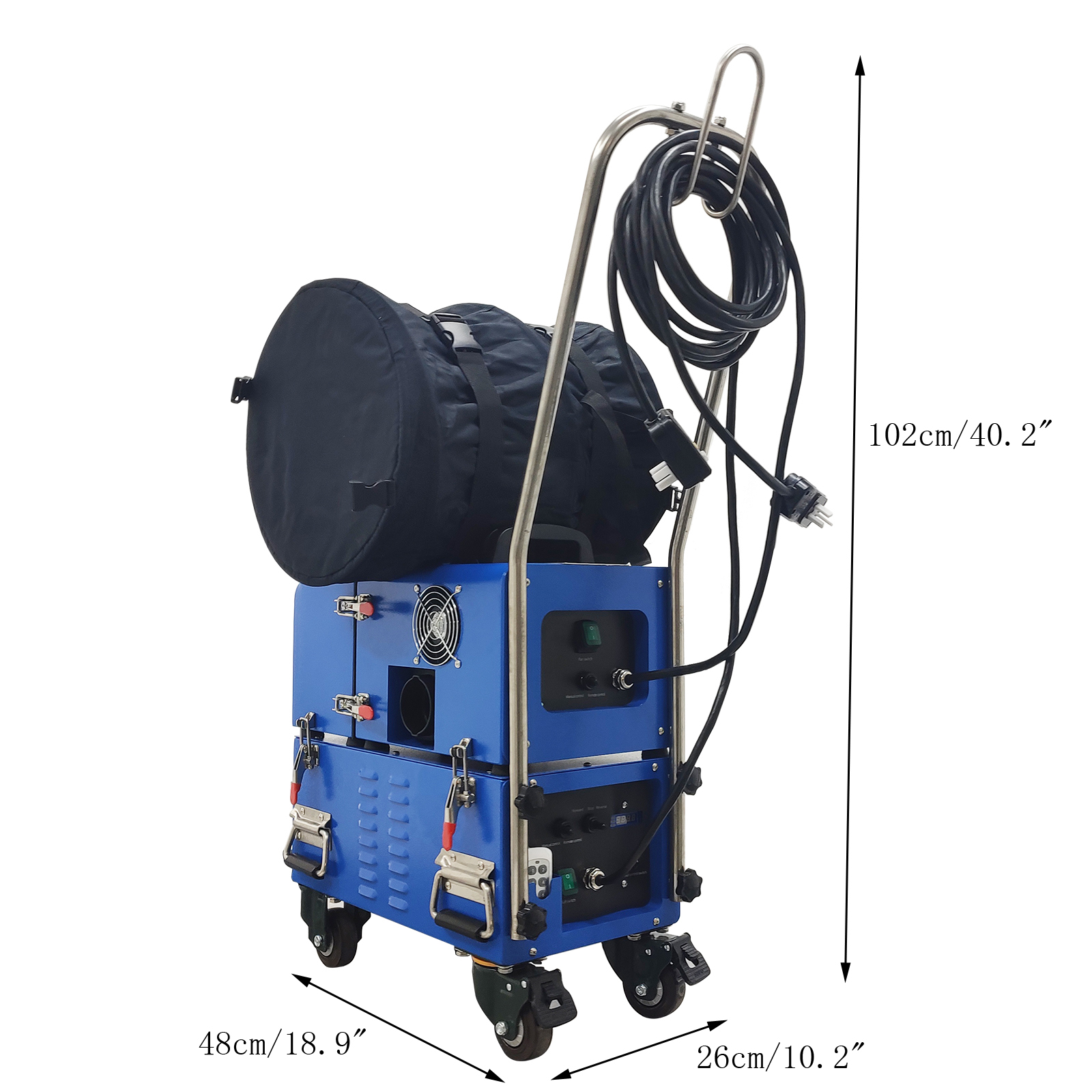

Product size：48*26*102cm |
|
Notice
|
|
1.In order to ensure the transportation safety of the product,
no batteries are installed in the remote controller, and the
customers need to prepare the batteries by themselves. The
type of batteries: 23A12V
2.Before
powering on the equipment, ensure that the flexible shaft is
fully extended and do not use it in a wrapped state to
prevent internal breakage and damage of the flexible shaft.
|

|
|
Features
|
|
1. It can continuously
pass through three right-angle bends and freely move inside the
air pipe, and cleaning is free of dead corners.
2. The rotating speed is adjustable, 0-1400r/min stepless
variable frequency speed regulation.
3. Integration of sweeping and suction, the falling dust can be
sucked into the dust collection bag while cleaning is conducted,
and cleaning and dust suction can be carried out simultaneously,
so that the efficiency is improved.
4. The machine has a dust blowing function, the dust blowing
mode can be chosen according to working conditions, the wind
power is high, and the speed is high.

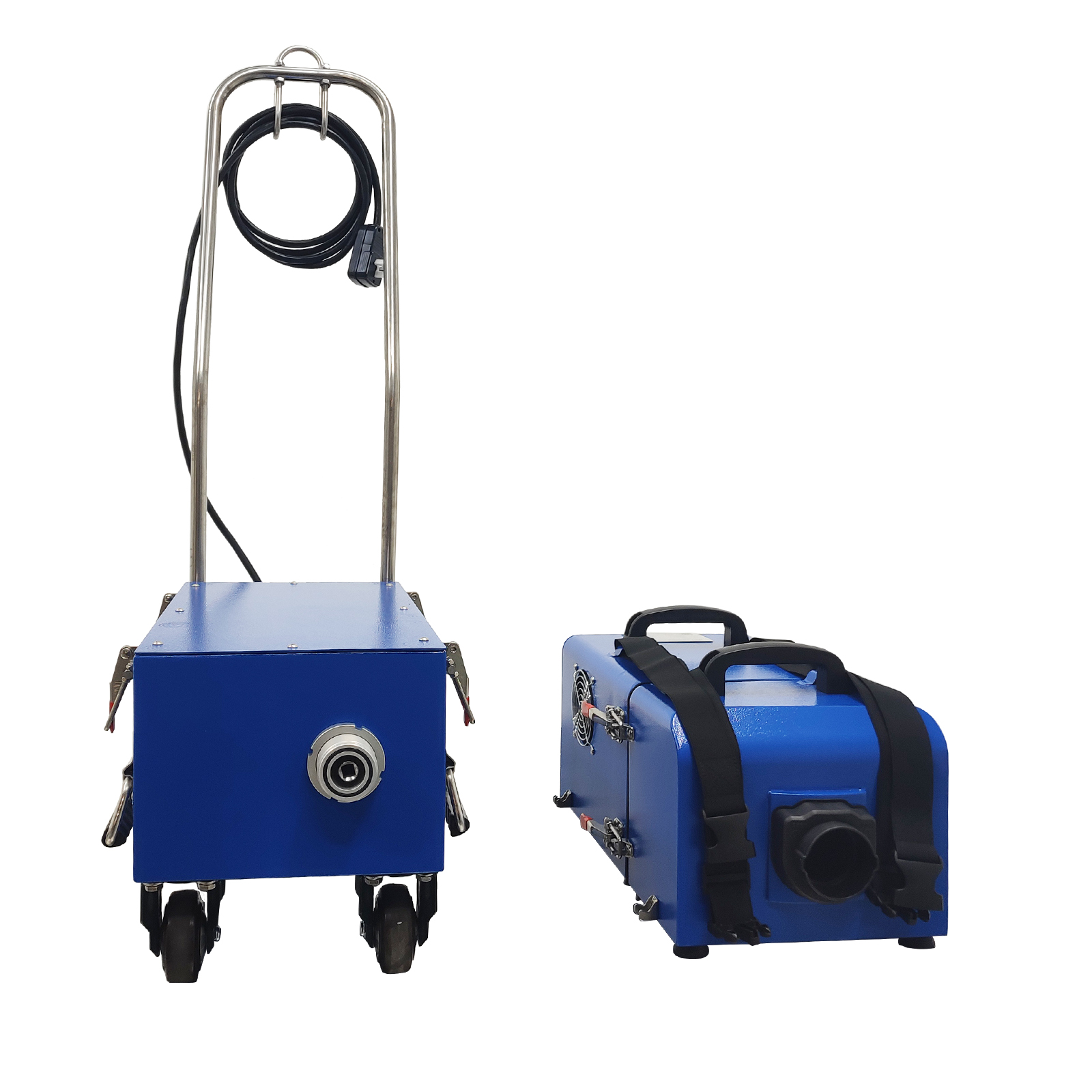

5. Split design, the dust suction filtration system and the
cleaning system can be controlled separately and can be used
independently.
6. Forward and reverse rotation operation, forward and reverse
rotation can be adjusted according to the operating requirements
so as to achieve cleaning without dead corners.
7. Large diameter of the cleaned pipe, the pipes with diameter
of 50-200mm can be cleaned.
8. Dual modes of manual control and remote control, remote
control can be conducted, and single person operation can be
achieved. |
|
|
|
Operation Method |
1. Connect one end of the flexible shaft to the interface of the
main unit.
2. Connect one end of the vacuum tube to the interface of the
main unit.
3. Thread the flexible shaft through the other end of the vacuum
tube and install the cleaning brush.
4. Place the cleaning brush into the interior of the duct and
seal the duct opening.
5. Turn on the main power switch and turn on the vacuum and
flexible shaft switches simultaneously.
6. Select the manual or remote control mode as needed. The
remote controller can control the on/off function of both the
flexible shaft and vacuum switches simultaneously.
7. Adjust the forward or reverse rotation direction as needed.
8. Rotate the speed knob to adjust the brush speed.
9. After using the machine, take down the dust collection box
and remove the dust. |
|
