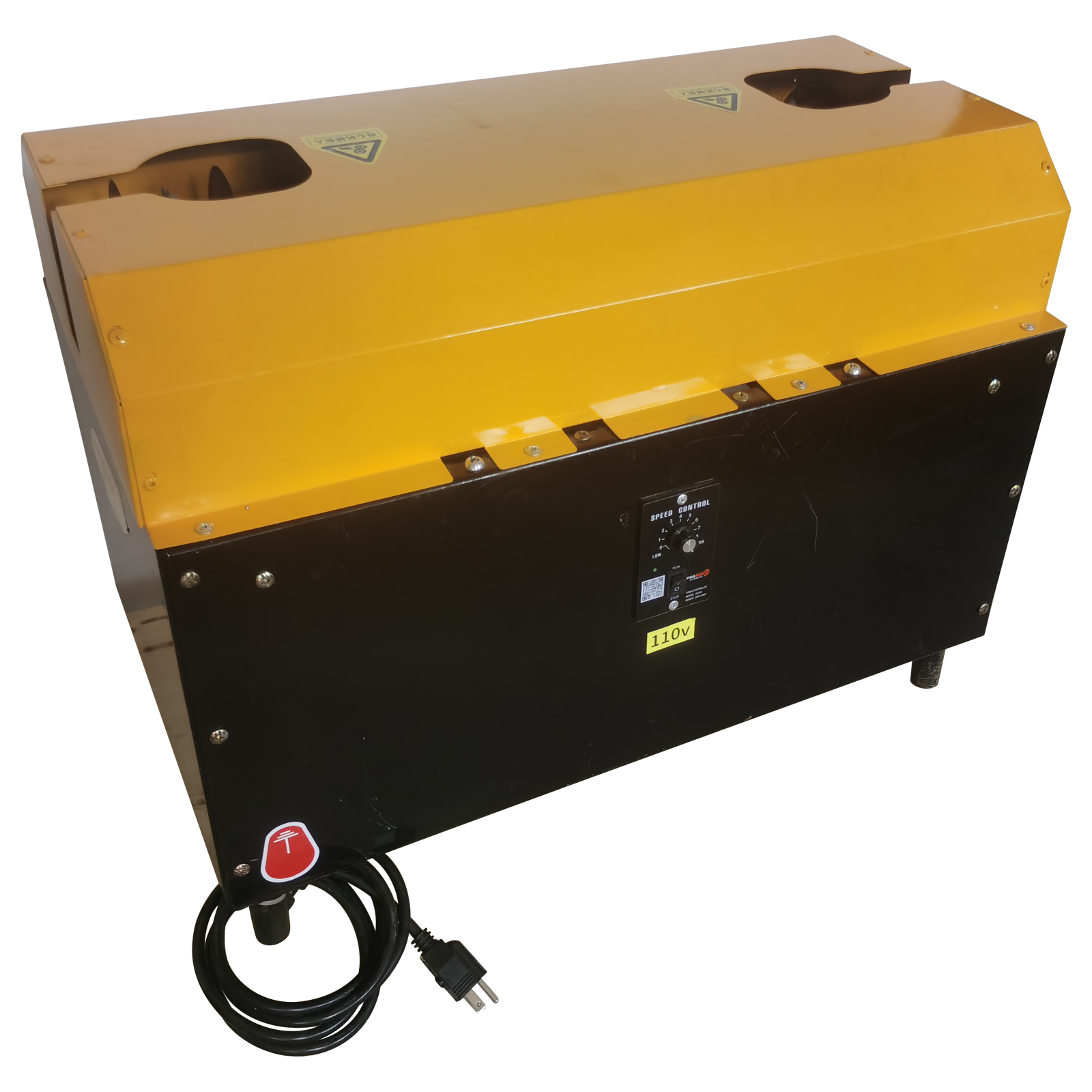

Double-blade Garlic Seedling Cutting Machine Garlic Root and Stalk
Cutting Machine 110V |
|
|
|
|
|
|
 |
|
Product
Overview |
| The garlic root and stalk
cutting machine is suitable for field and household work, can
cut off garlic roots and stalks in one go, has the advantages of
clean cutting and fast speed, and effectively saves time and
labor. This machine is designed to be compact and lightweight,
easy to operate, power-saving, and efficient. It can cut
6000-8000 garlic plants per hour. It features stable
performance, practicality, safety, and easy operation and
maintenance. |
|
|
Product
Parameters |
|
Power |
180W |
|
Voltage |
110V |
|
Working Time |
Continuous |
|
Output |
6000-8000 plants/h |

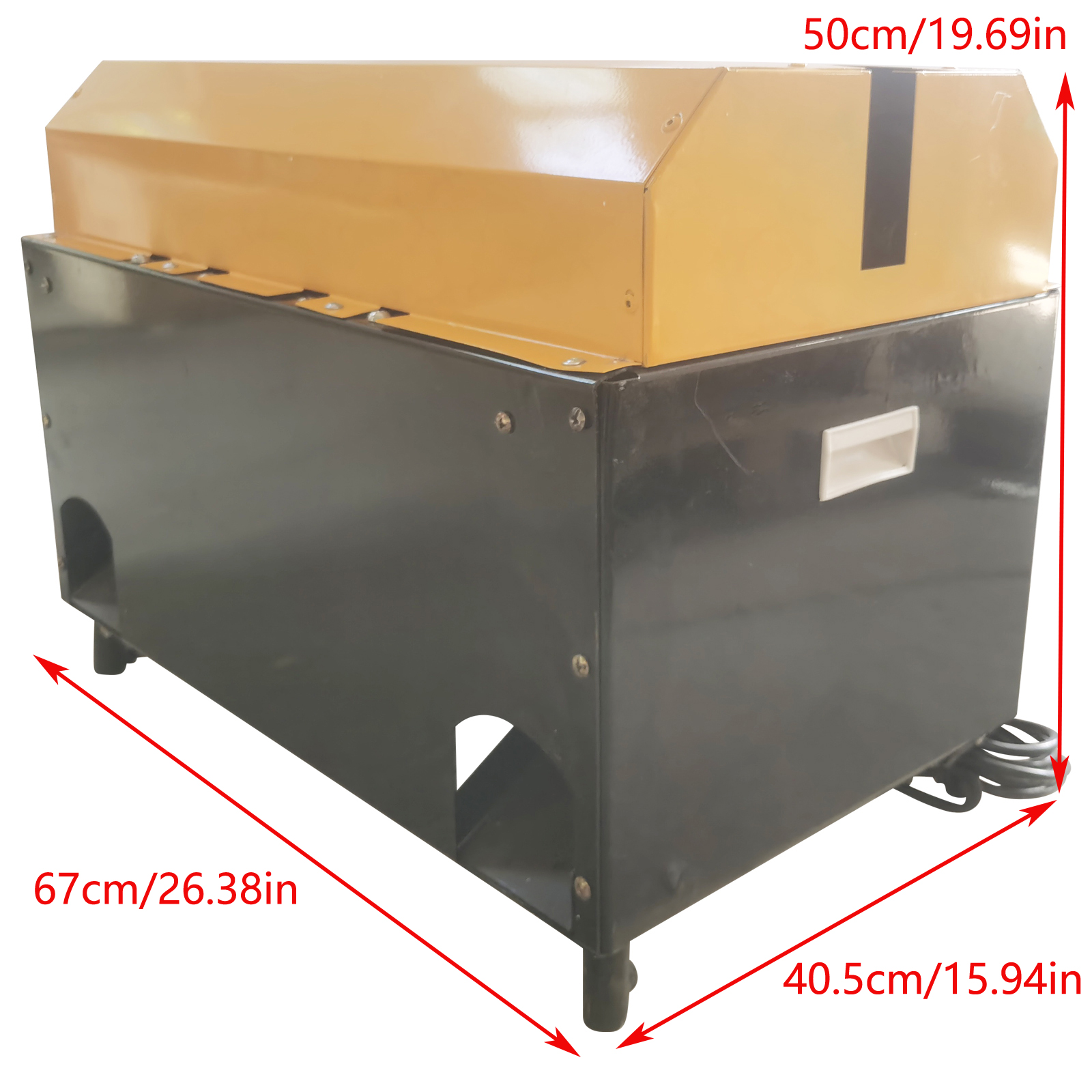

| Machine size |
82.5x40x47.5cm
(32.48x15.75x18.7 inches) |
| Net weight |
49.5kg (109.13LBs) |
|
 |
|
Attention |
|
1. Please ensure the power supply you use
matches the product’s technical requirements (AC110V 60Hz) to
ensure safety.
2. Confirm the machine is properly grounded
to ensure safety.
3. Do not directly handle garlic with your
hands during operation. If any abnormality is detected, stop
using the machine or disconnect the power immediately.
4. Keep children away from the machine during
operation.
5. Avoid cutting into hard objects such as
stones and dry clods, as this may damage the blade and affect
normal operation.
6. Except for the parts specified in the
manual that can be maintained or replaced, do not open or modify
other components.
7. Do not insert fingers or tools into the
feed inlet (neither in operating nor stopped state);
8.
Do
not remove the machine casing when the machine is running, to
avoid electric shock or scratches caused by moving parts. |
|
|
Product
Features |
|
|
|
Machine Body
The whole machine body is of a sealed
structure, internal motor and parts are effectively protected
from collision and damage, both the equipment safety and the
personal safety are well ensured, and the machine is simple in
structure and stable and reliable in performance.
|
|

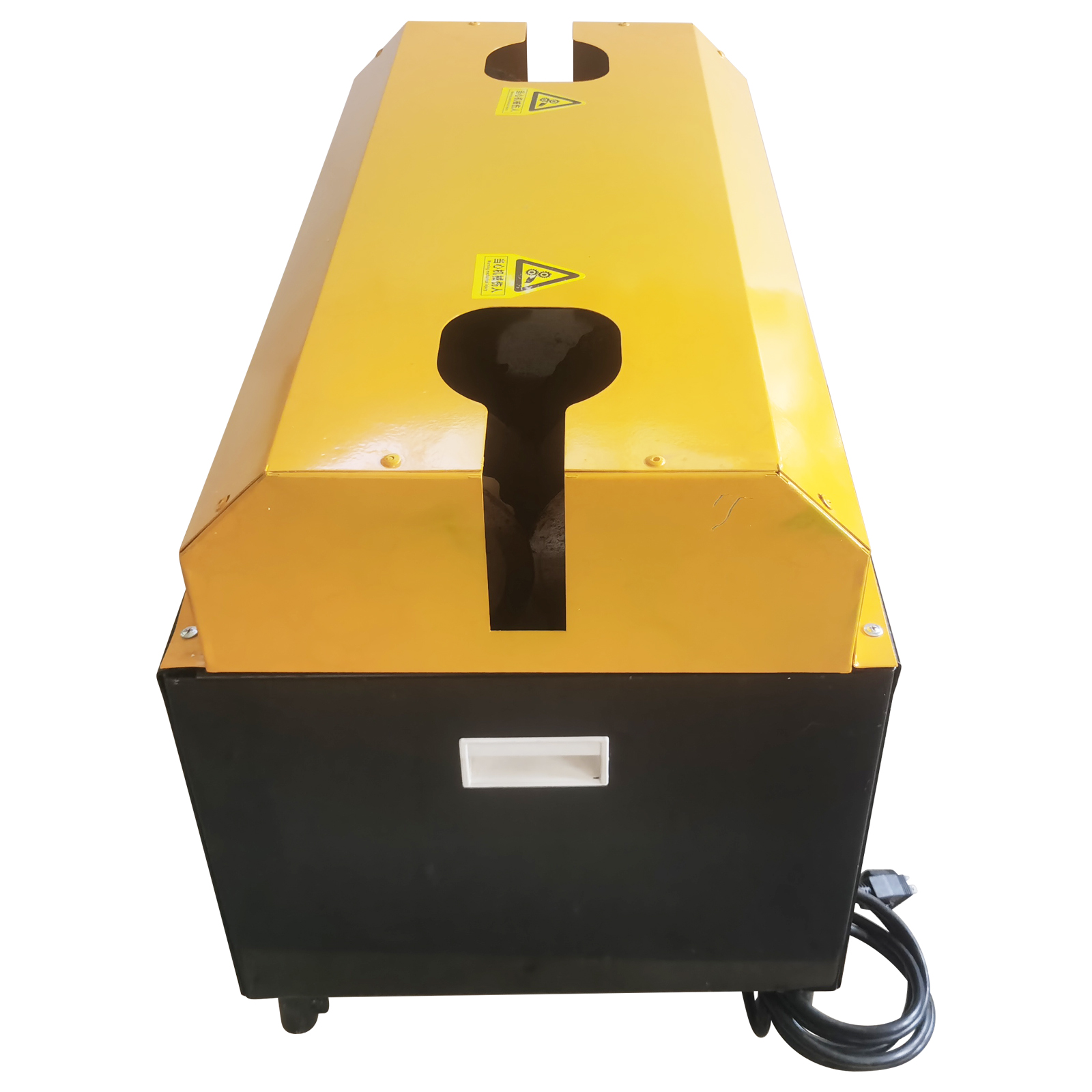

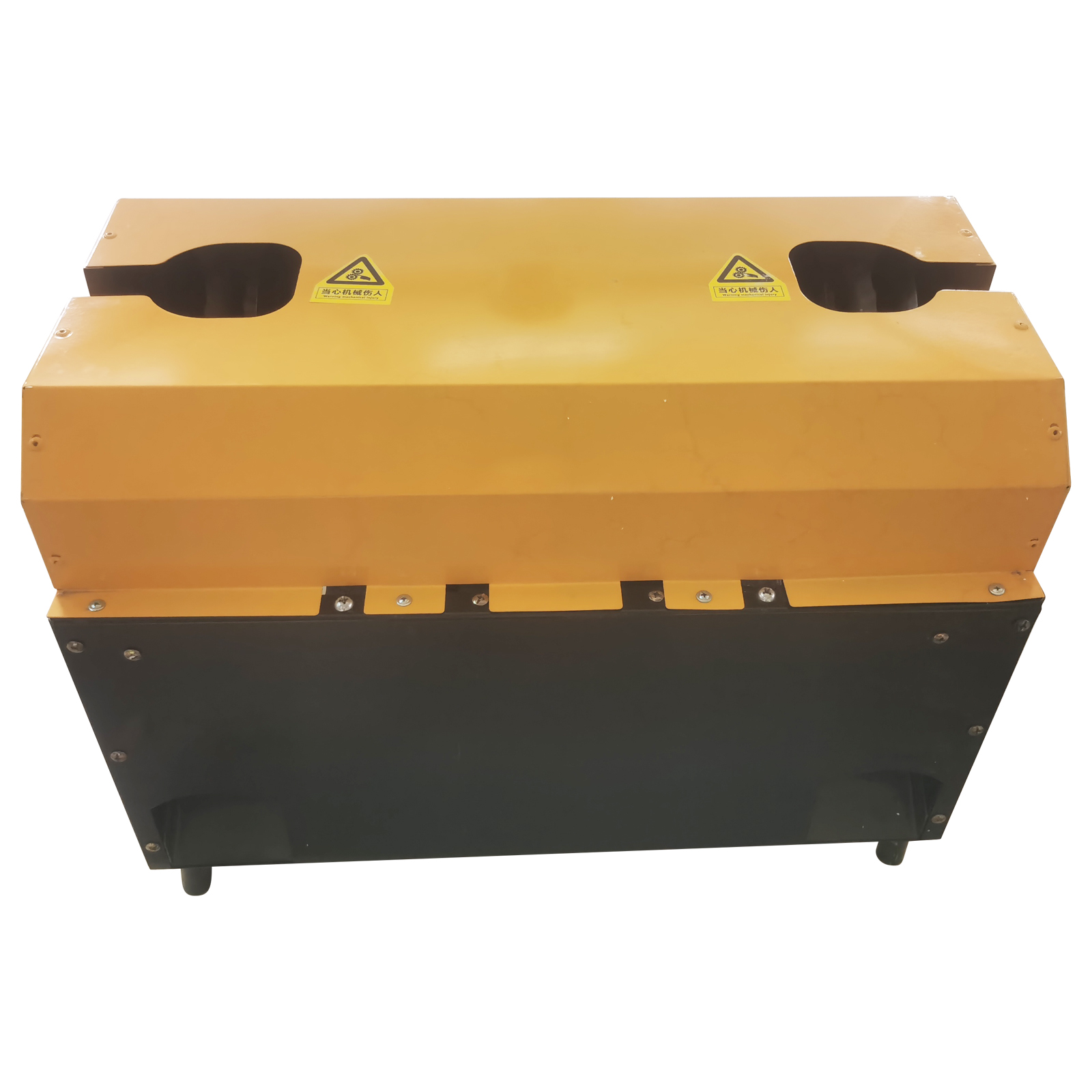

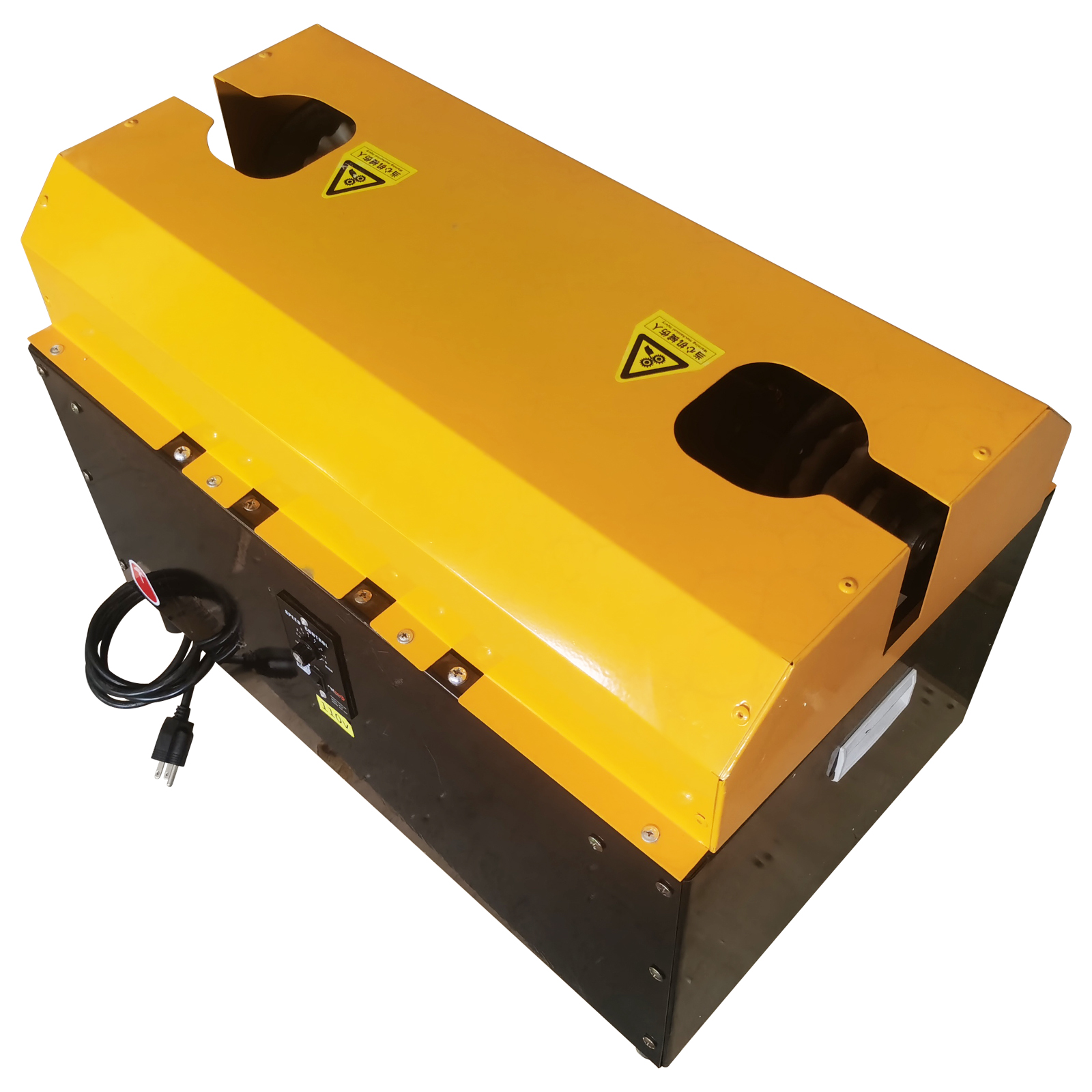

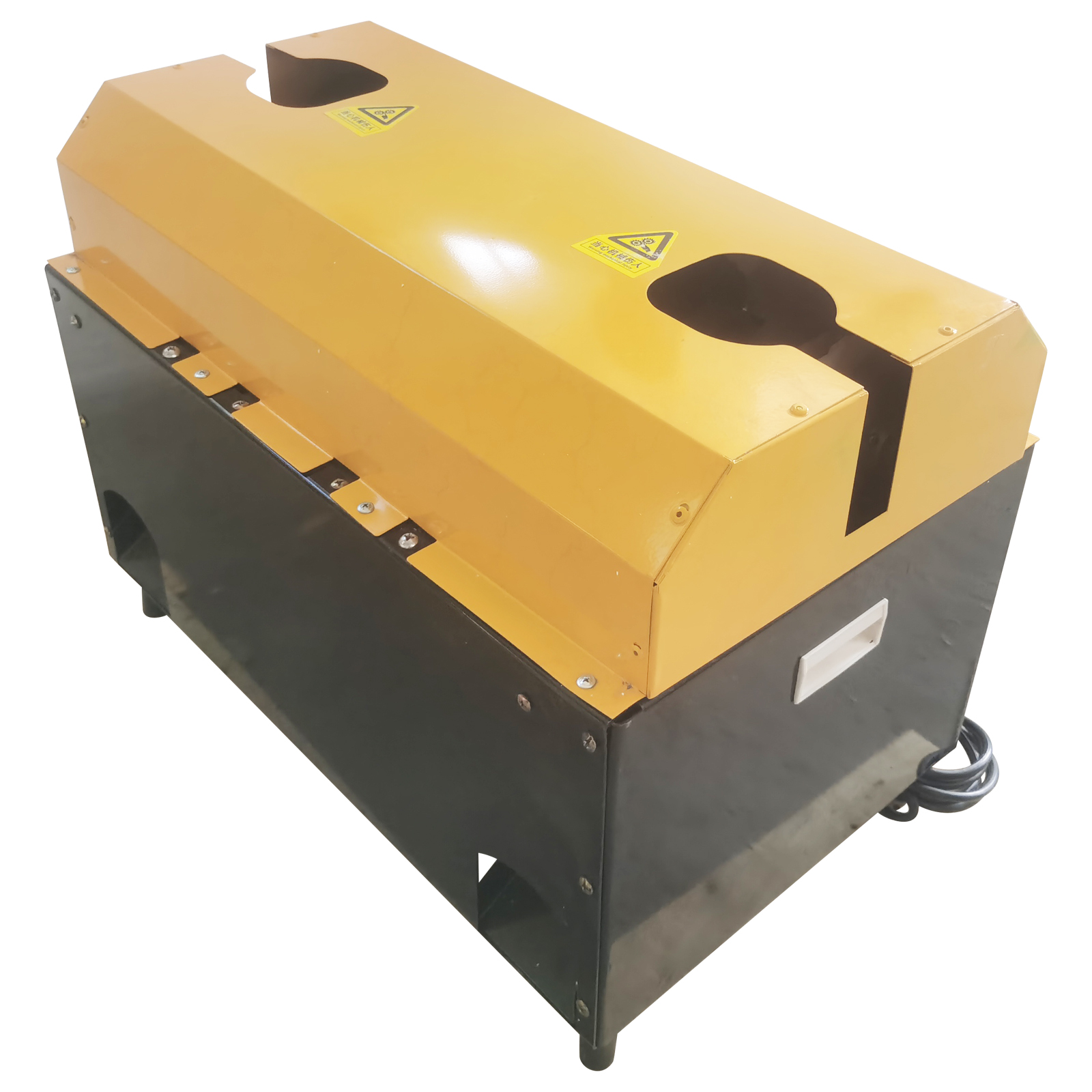

Feeding Inlets
The
two feeding inlets are oppositely designed to achieve
synchronous feeding, effectively improving the feeding speed and
cutting efficiency during use. The shape of each feeding inlet
is exactly matched with the garlic seedling, facilitating safe
and smooth feeding. |
|
|
|
|
Cutting Assembly
The cutting blades and pads are combined to
achieve complete cutting of the garlic root and stalk and
discharge of the garlic head at the same time, greatly saving
time and labor, achieving a perfect cutting effect and improving
the cutting quality and efficiency.
|
|

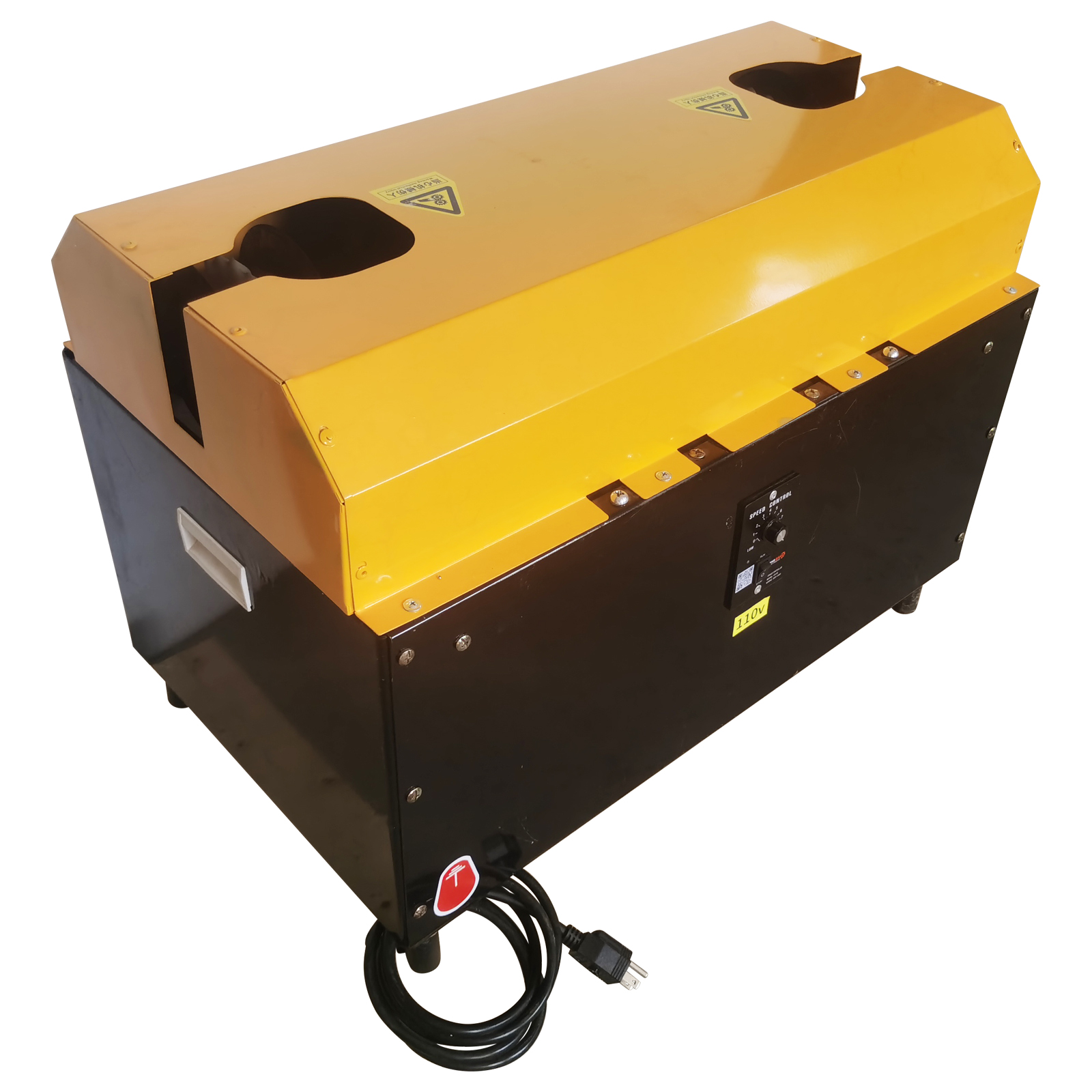

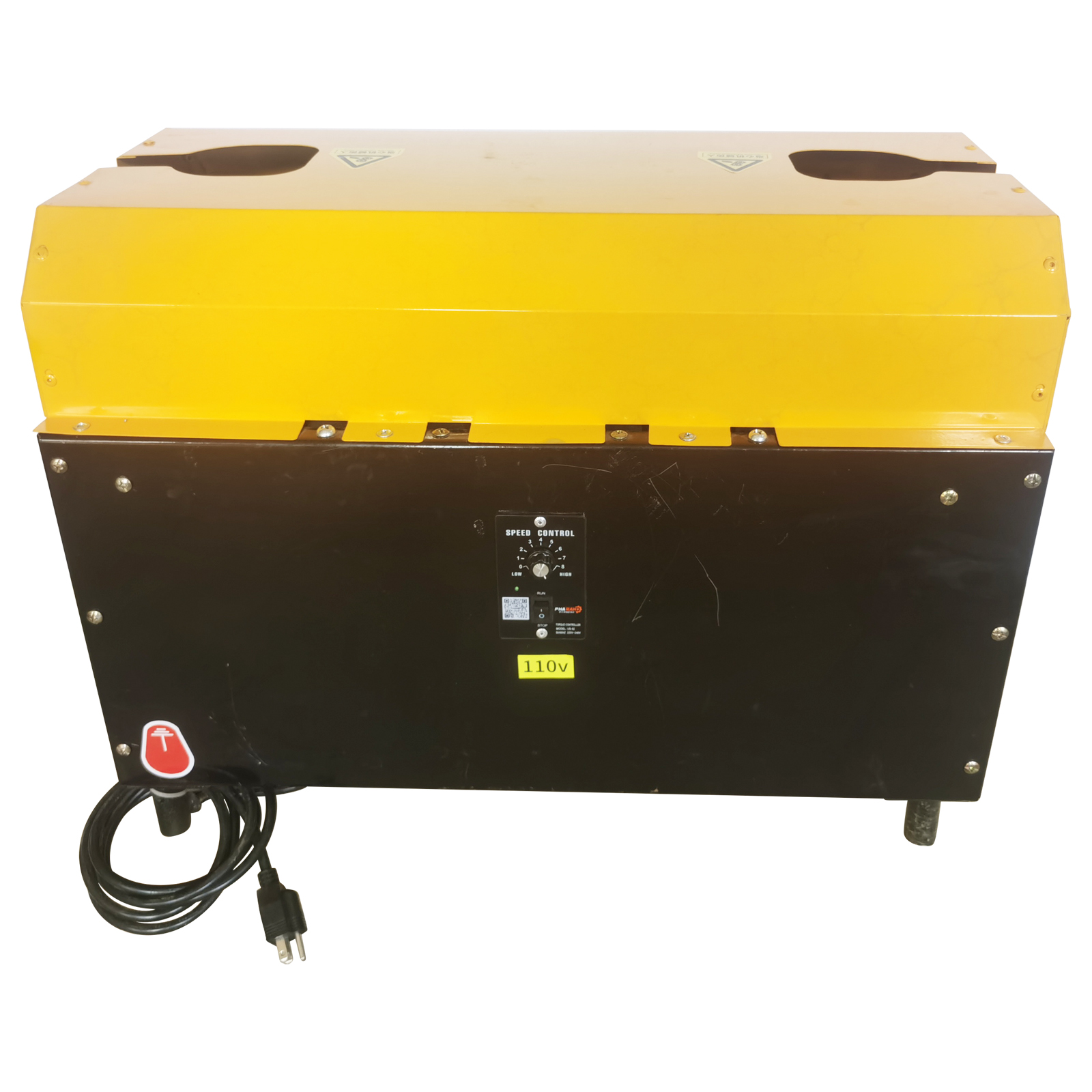

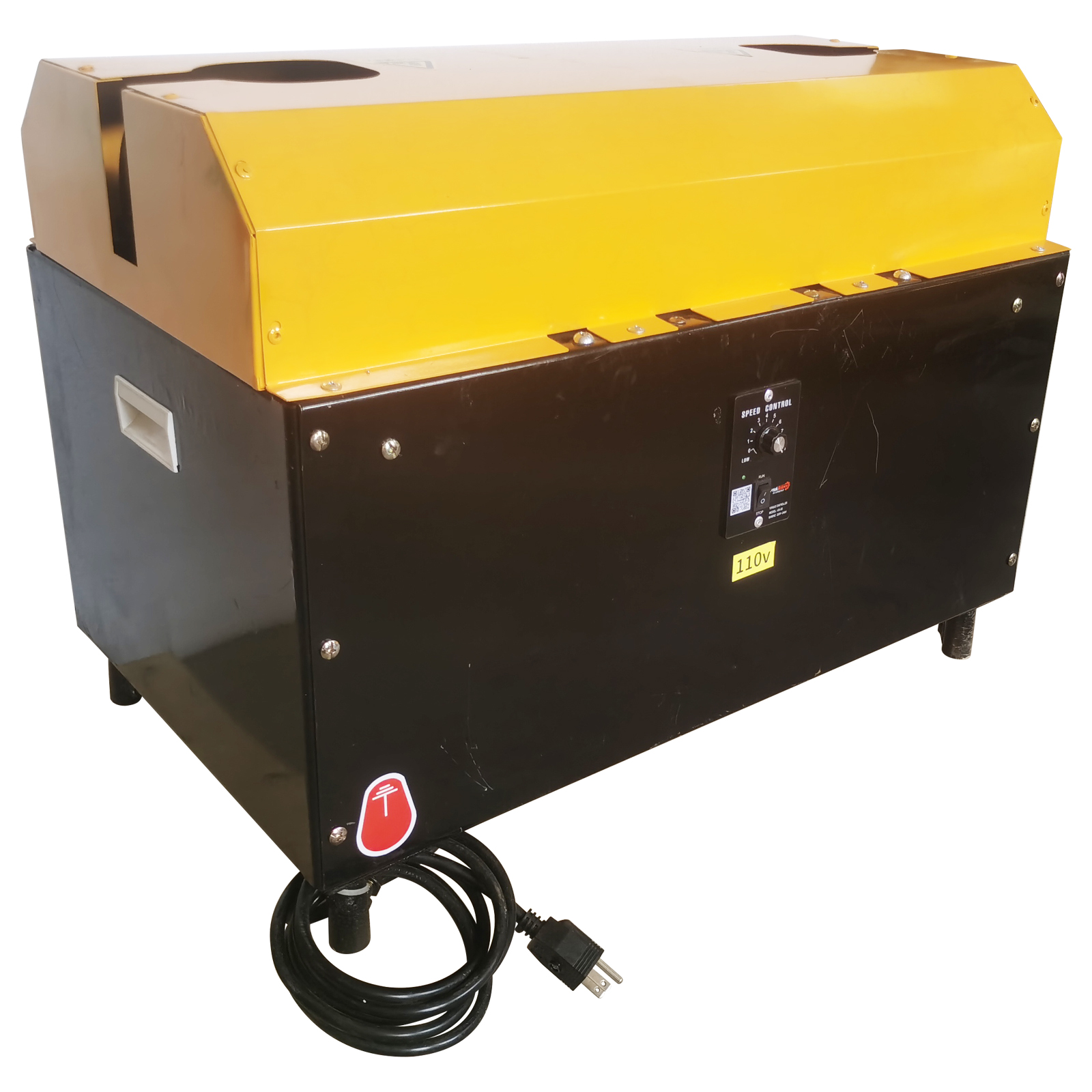

Speed Regulator
The
speed regulator is designed for adjusting the cutting speed to
meet different speed requirements. The start switch and the
speed knob are integrated to achieve effective control over the
cutting operation, and the practicability is well enhanced. |
|
|
Operation
Method |
|
1. Commissioning
Before using the device, adjustments
must be made according to the size of the garlic to be
cut. The garlic stalk length is set to 2.5-5cm at the
factory, and users can adjust it as needed (adjustment
range: ±1cm). Remove the protective cover, screws, and
stalk-cutting blades in sequence.
First, adjust the distance between
each set of blades by tuning the screws: Each blade set
(composed of blades on the same horizontal line) must be
adjusted to the appropriate position with the blades
tangent to each other. If the blades are separated,
effective cutting cannot be performed.
Second, the distance between each pad
set (one set includes one large and one small pad)
should also be adjusted on the basis of the size of the
garlic bulbs to be cut. If the garlic bulb is larger
than the distance between the pads in a set, the
distance between the pads in each set can be adjusted by
inserting or removing the fixing plate (the pads on both
sides must be kept level), so as to better assist the
cutting and dropping of the garlic.
2. Operation
After powering on the device, place
each garlic bulb (with seedlings attached) onto the feed
inlet one by one. The cut garlic bulbs will drop from
the discharge outlet. A collection bag or material box
can be attached at the discharge outlet to collect the
cut garlic bulbs. |
|
|
|
Product
Display |
 |
 |
 |
 |
|
Item Number (022831): 1 x Garlic Root and
Stalk Cutting Machine 110V |
|
|
