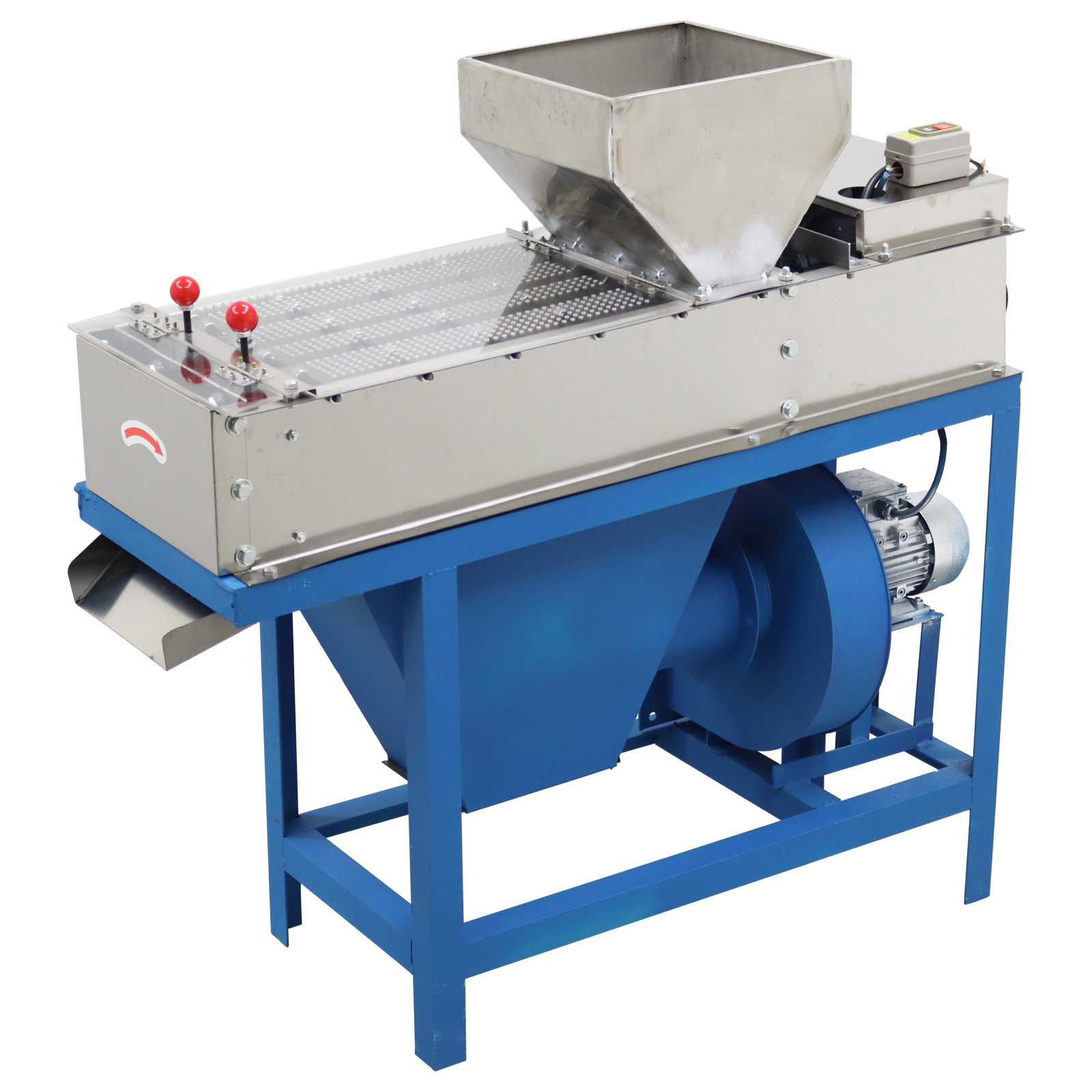

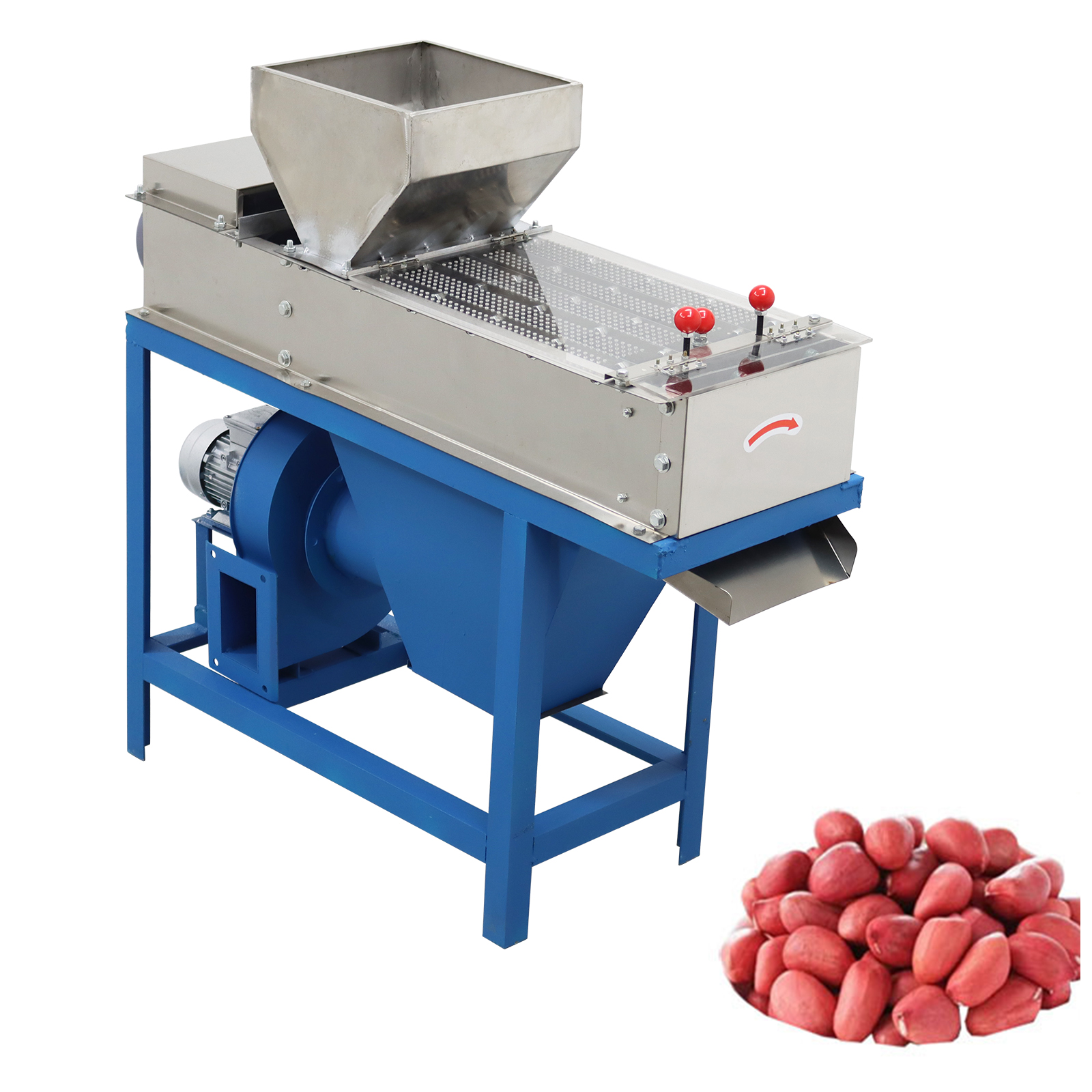

Peanut Peeling Machine (Red Coat for

Dried and Ripe Peanuts)

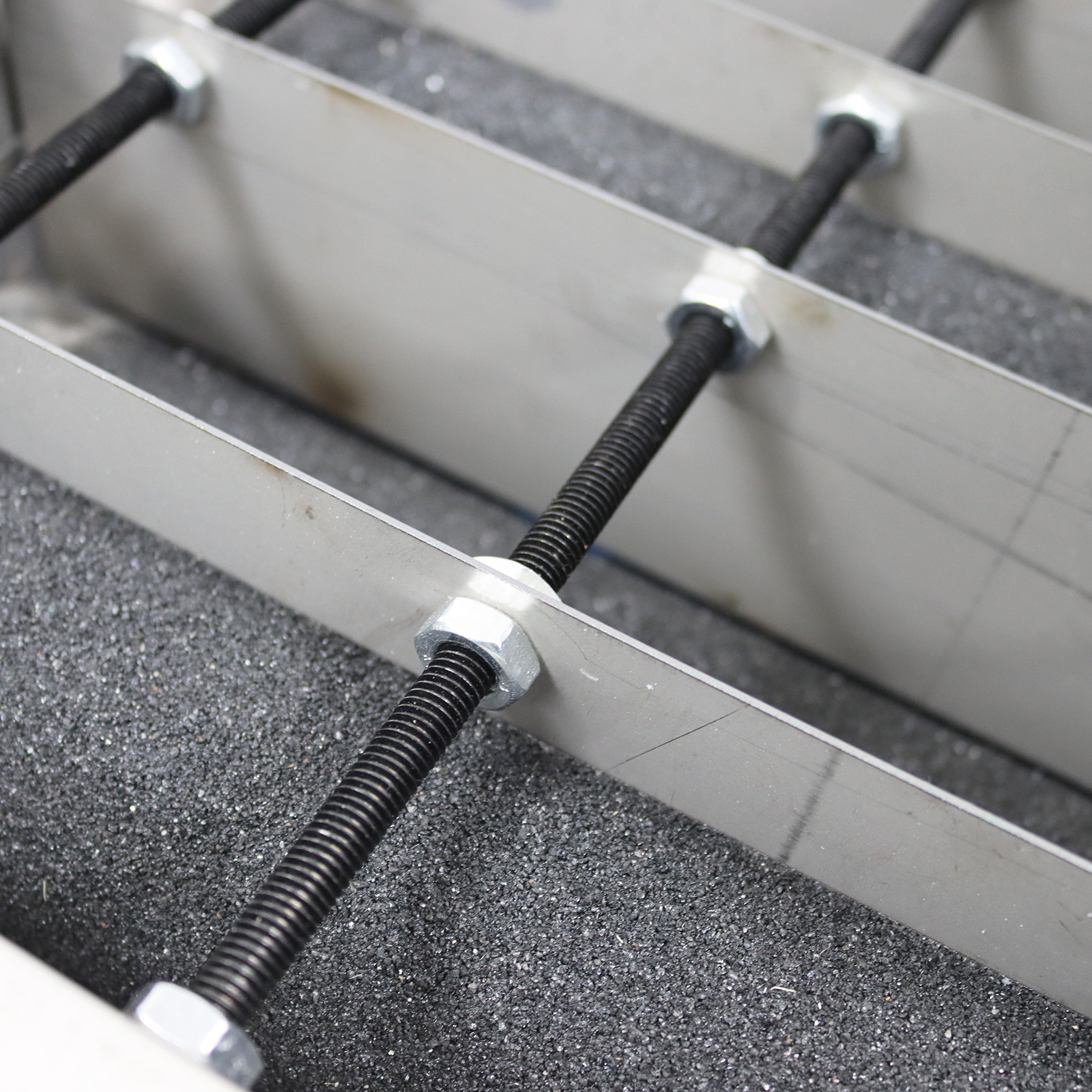

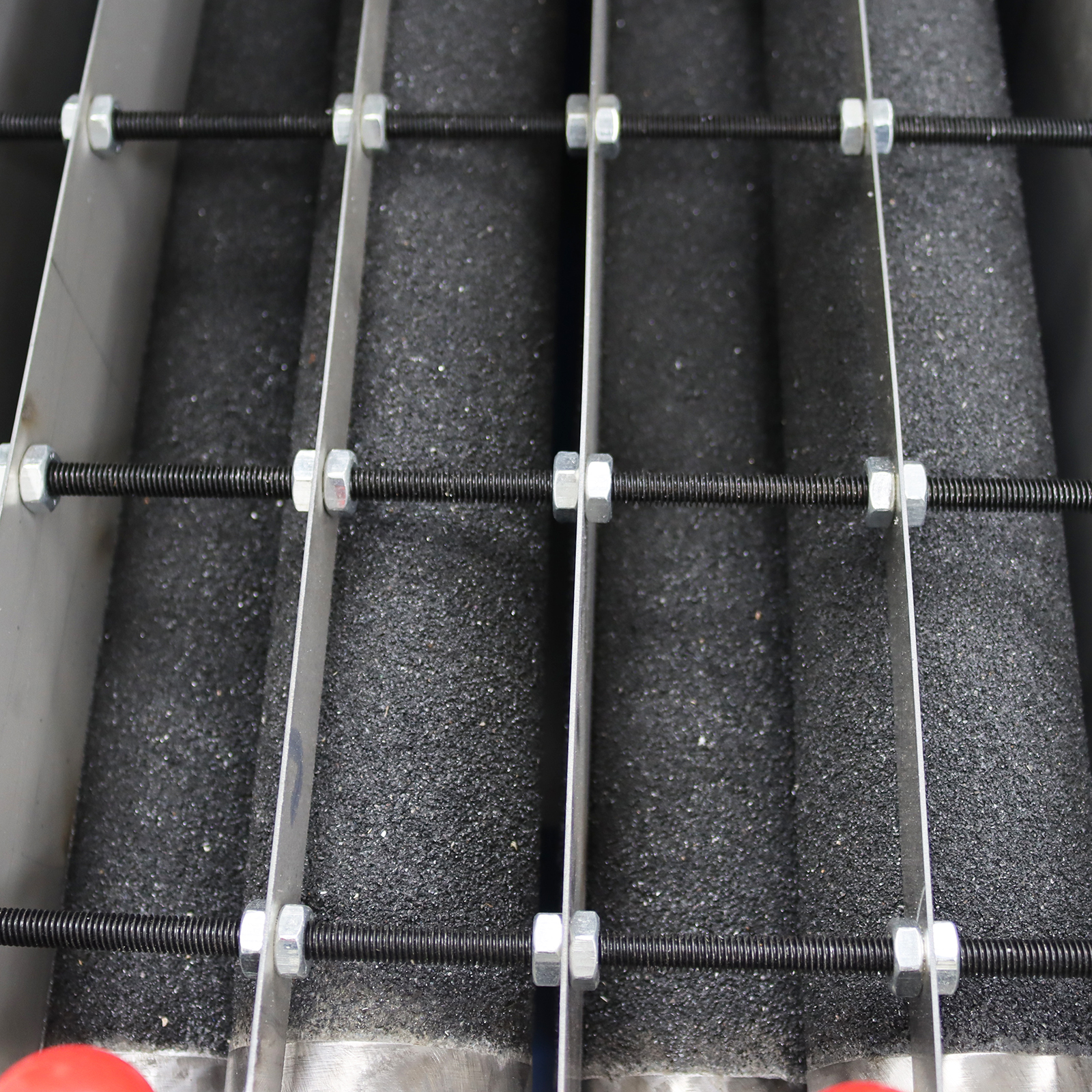

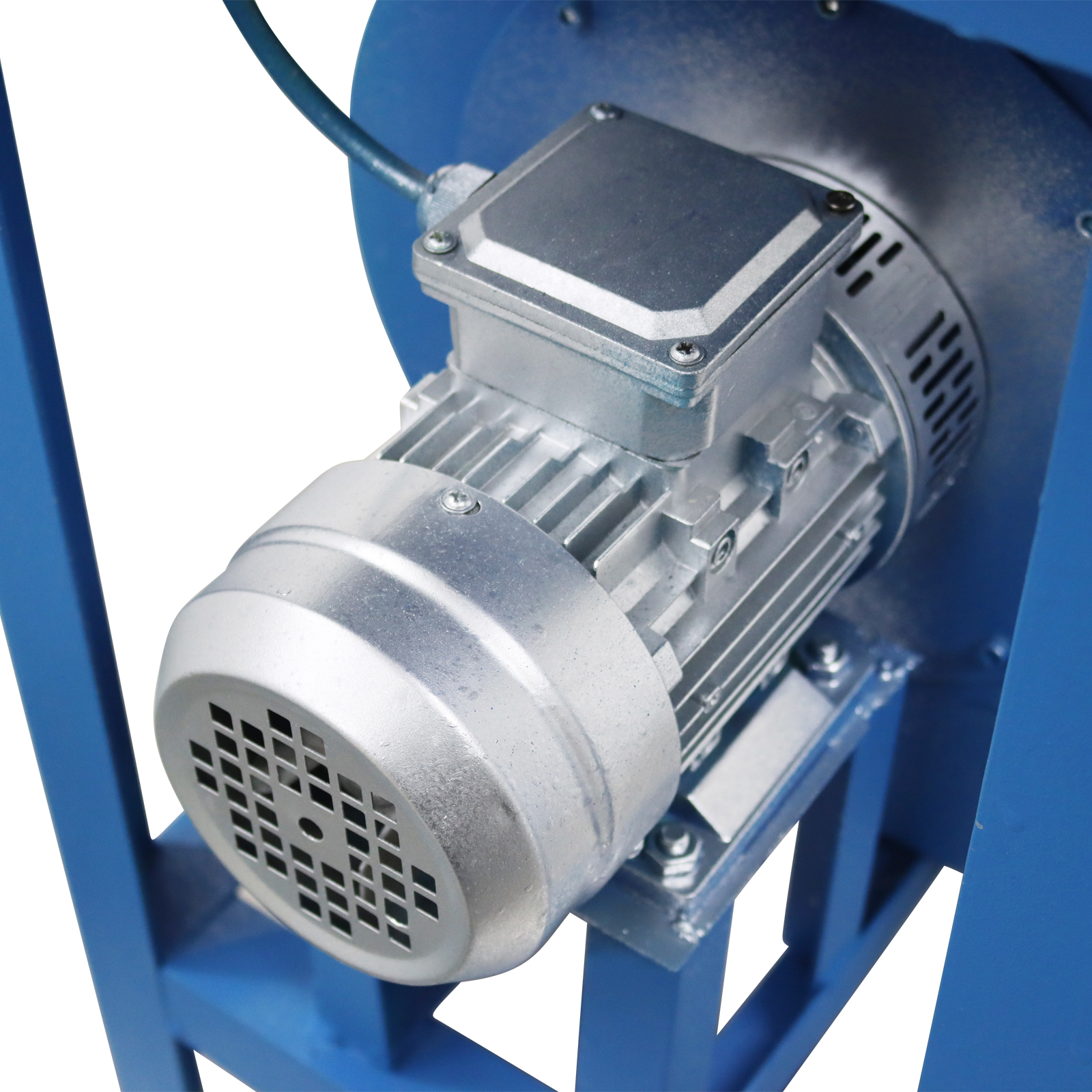

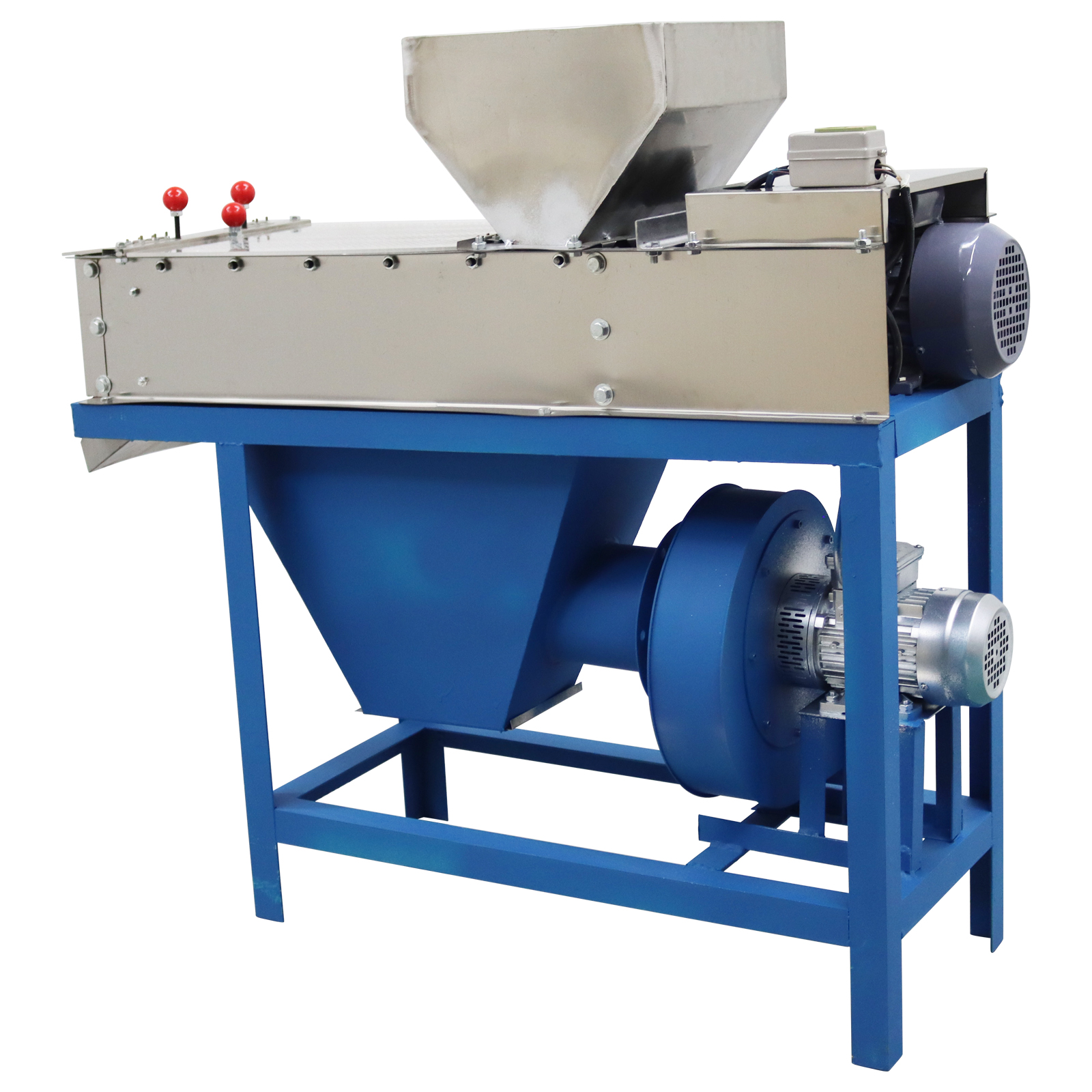

The peanut kernel dry peeling machine comprises power devices (including a motor, a pulley, a belt, a bearing, a machine frame, a feeding hopper, a peeling roller, a skin suction fan and a skin storage hopper). A skin kneading and rolling method is adopted to peel off peanut skins, the machine has the advantages of stable and reliable performance, long service life, good peeling effect, high production efficiency, good quality and so on. Multiple peeling machines can be combined to be used, and the machine is suitable for peeling peanut skins of various specifications of peanuts.

Note:

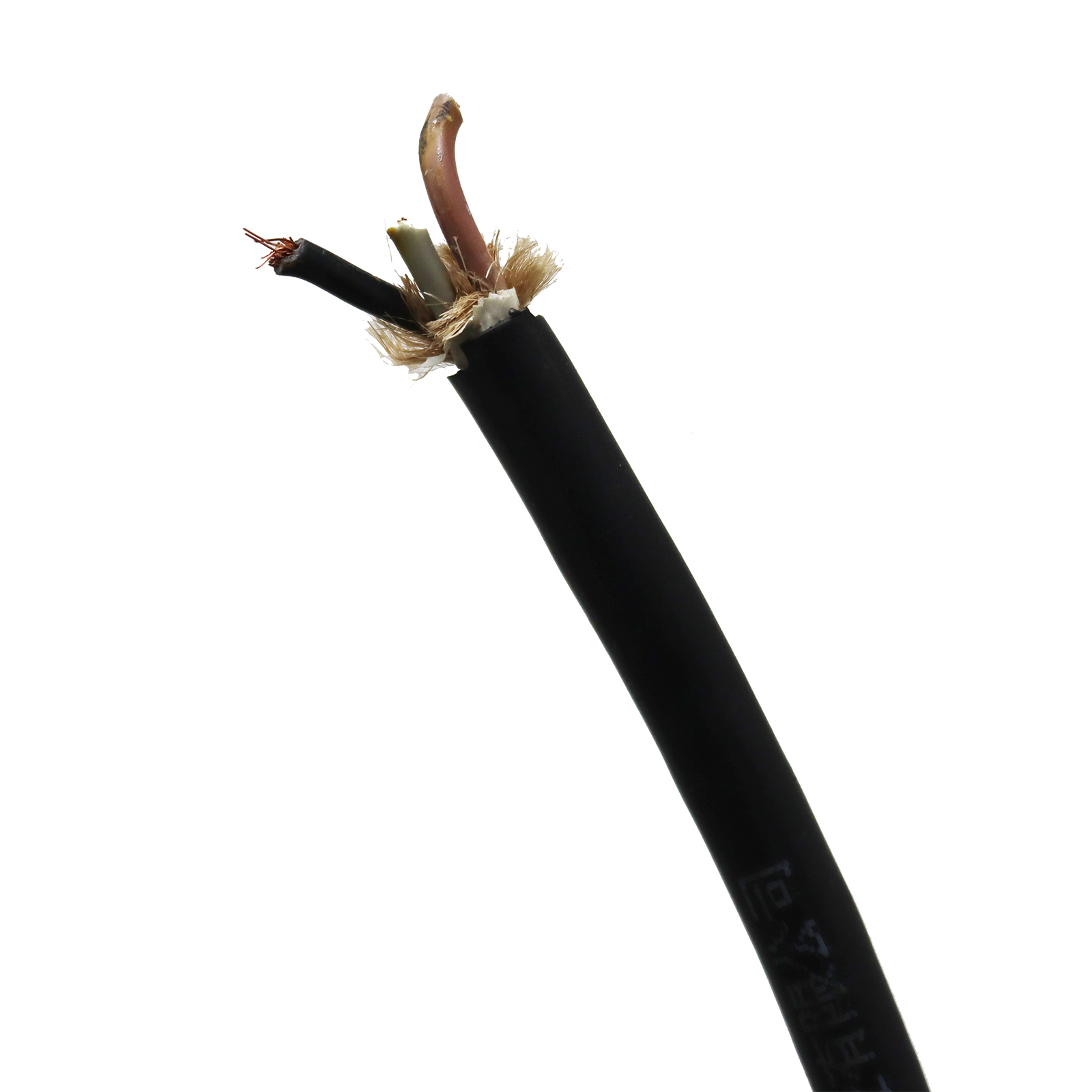

1.The machine does not come with a plug, and customers can directly connect it to the main power switch for more stable voltage.

2.It is normal for peanuts to split into two pieces after peeling, and it is not considered damaged. Please consider carefully before placing an order.

The machine adopts the design of enlarged feed port, which makes it more convenient for you to feed and effectively improves work efficiency.

Precautions:

4.Before starting the machine, check whether the power circuit and voltage are normal or not, whether all parts of the equipment are loose or not, and whether the test running is normal or not.

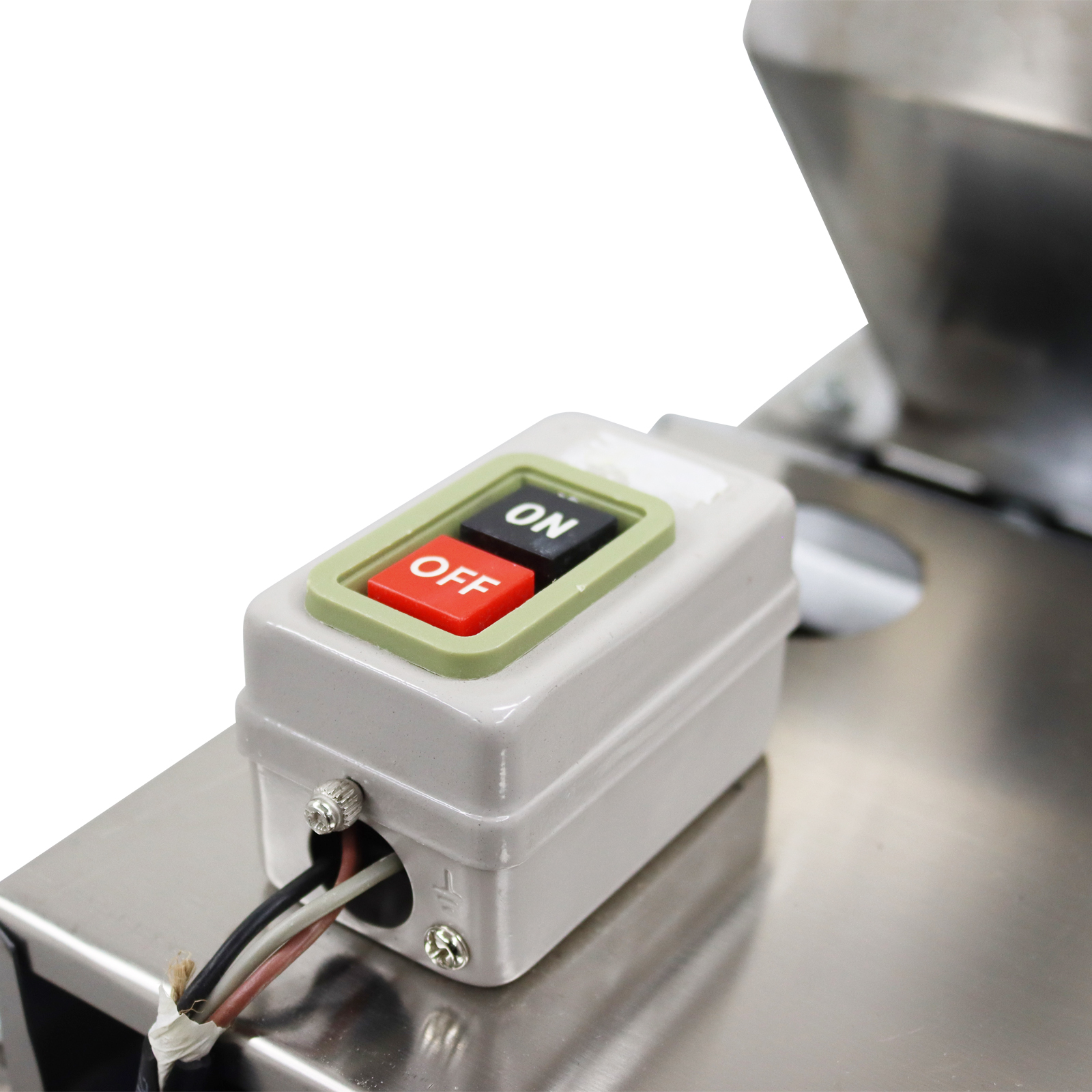

5.Start the button switch.

6.Pour materials into the machine.

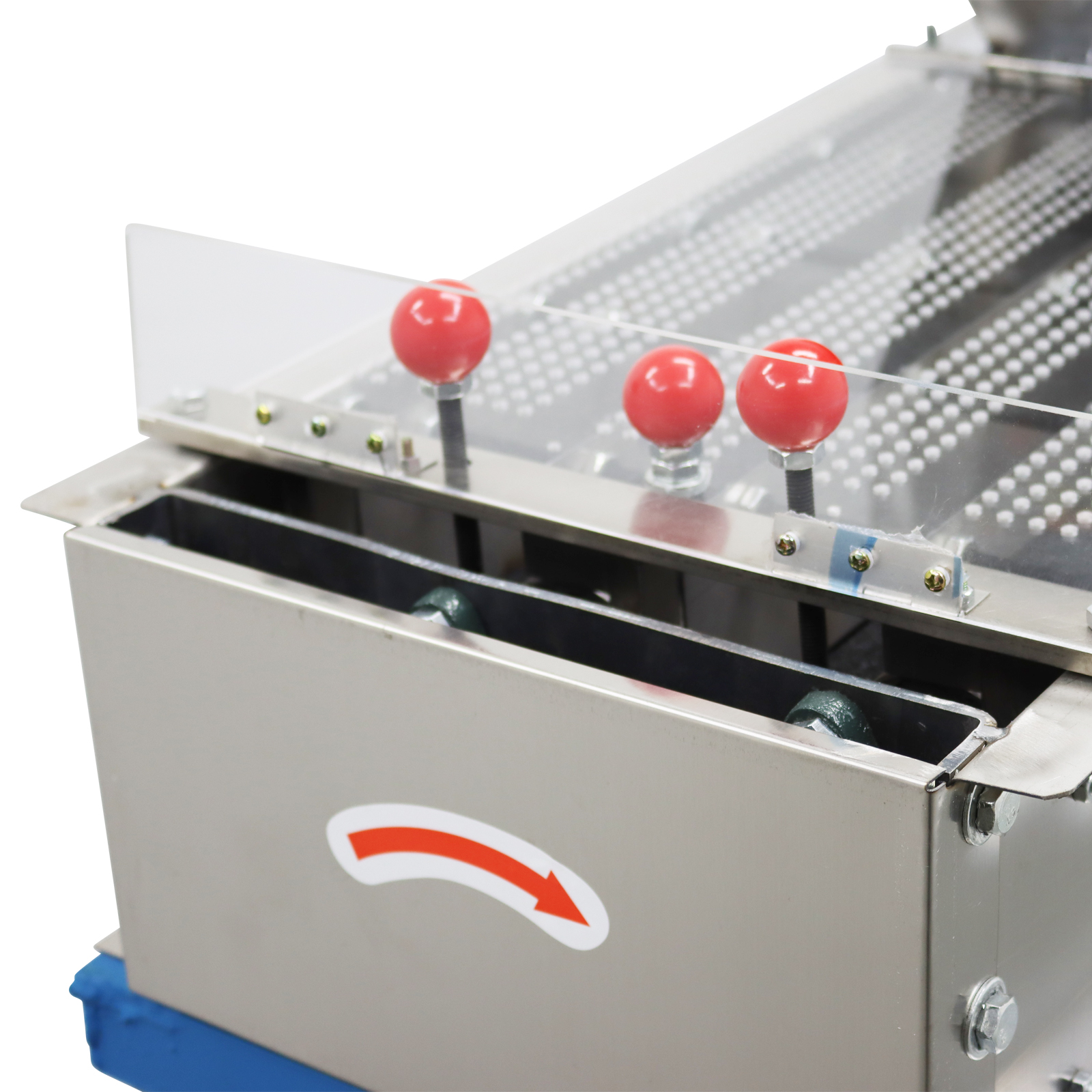

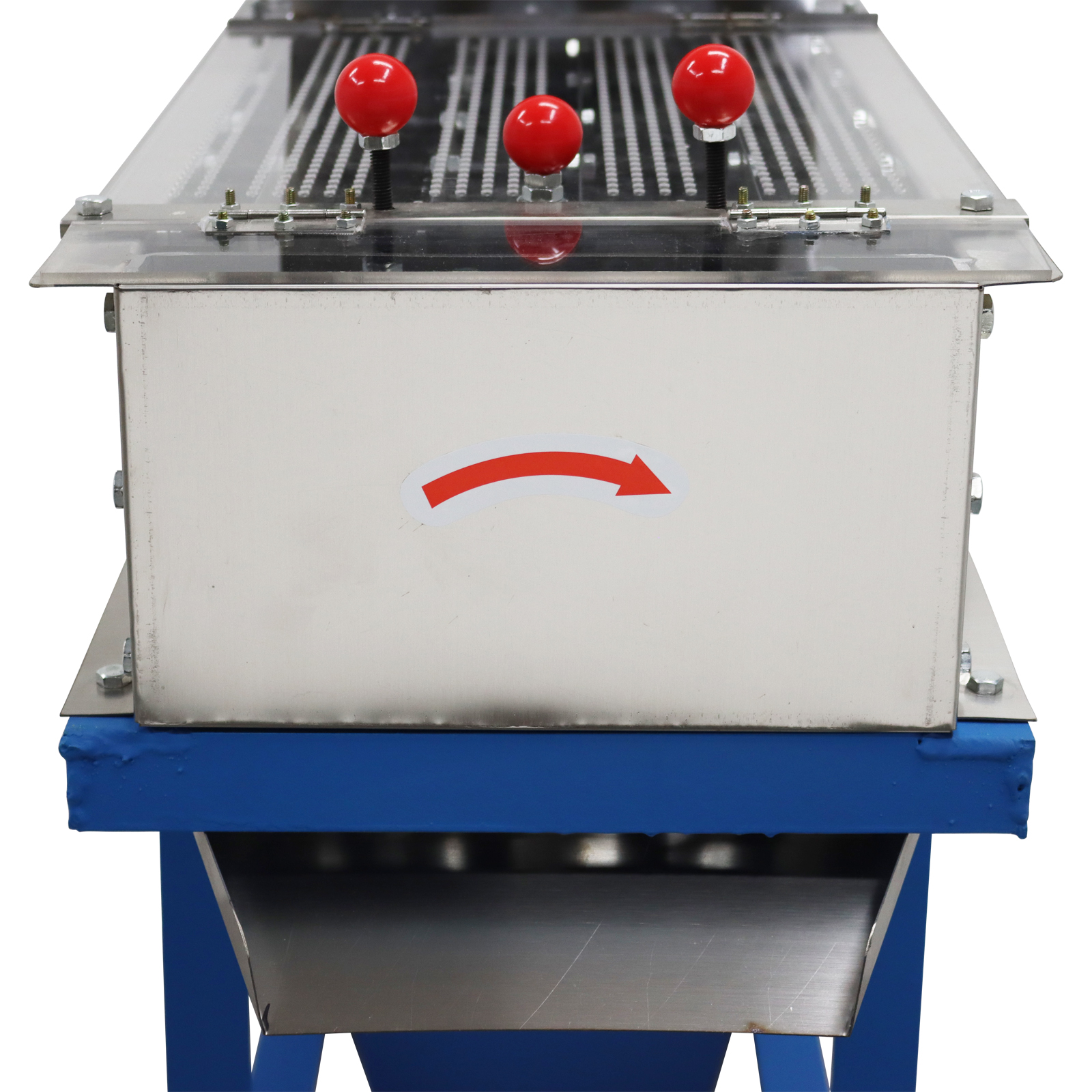

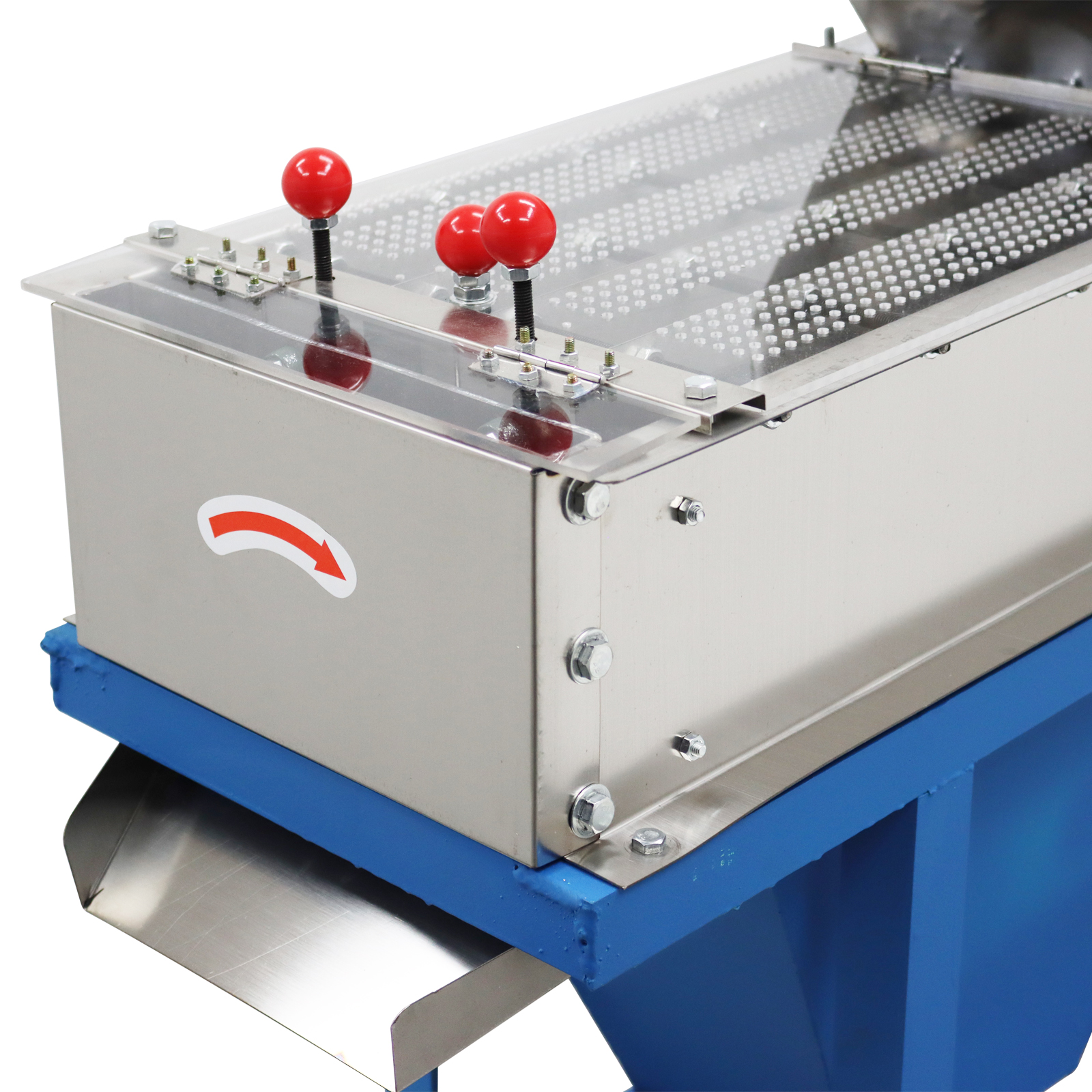

7.Adjust the two red knobs at the front end to adjust the discharging speed. When the knobs are adjusted clockwise, the discharging speed is low, the peeling rate is high, and the damage rate is high. When the knobs are adjusted counterclockwise, the discharging speed is high, the peeling rate is low, and the damage rate is low. Adjust the knobs to a suitable height. (The machine is usually set to be in the fastest discharge state at the beginning of use.)

8.After the work is finished every day, use a bristle brush to remove residues from the peeling roller and clean the mixed skins in the skin storage clothes bag away.

9.Clean the peeling machine roller once per shift, and regularly inject oil into the oil nozzle in the equipment bearing to prolong the service life of the bearing.

10.The belt will loosen after being used for a period of time. Please loosen the nut of the belt tensioning wheel and adjust the belt tensioning wheel downwards to tighten the belt. If the belt is severely worn, please replace it.

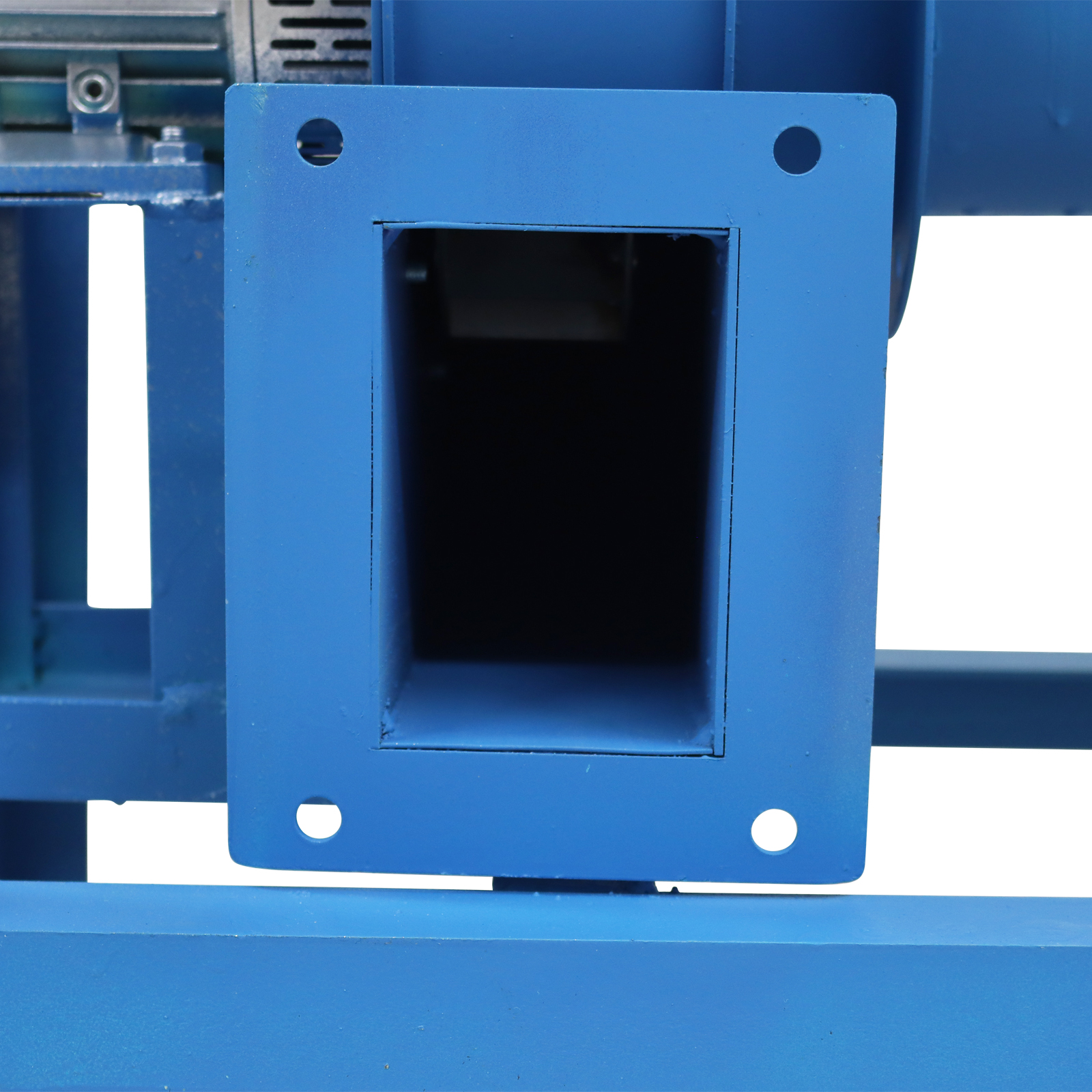

11.After the machine is used for a period of time, peanut skins and a small amount of peanut debris may exist in the skin suction fan and adhere to the blades or the fan volute of the suction fan, and excessive adhesion can affect the skin suction effect and the service life of the fan. The adhesive materials are regularly cleaned away every week.

Requirements of Equipment for Raw Materials:

1.The moisture content of the dried raw materials is about 4%.

2.After the raw materials are dried, they should be cooled thoroughly and be kept at room temperature.

3.No stones, iron ingots and other things exist, so that the damage to the peeling roller is avoided.

4.The raw materials need to be graded to avoid the phenomenon that the size difference is excessive to affect the peeling rate.

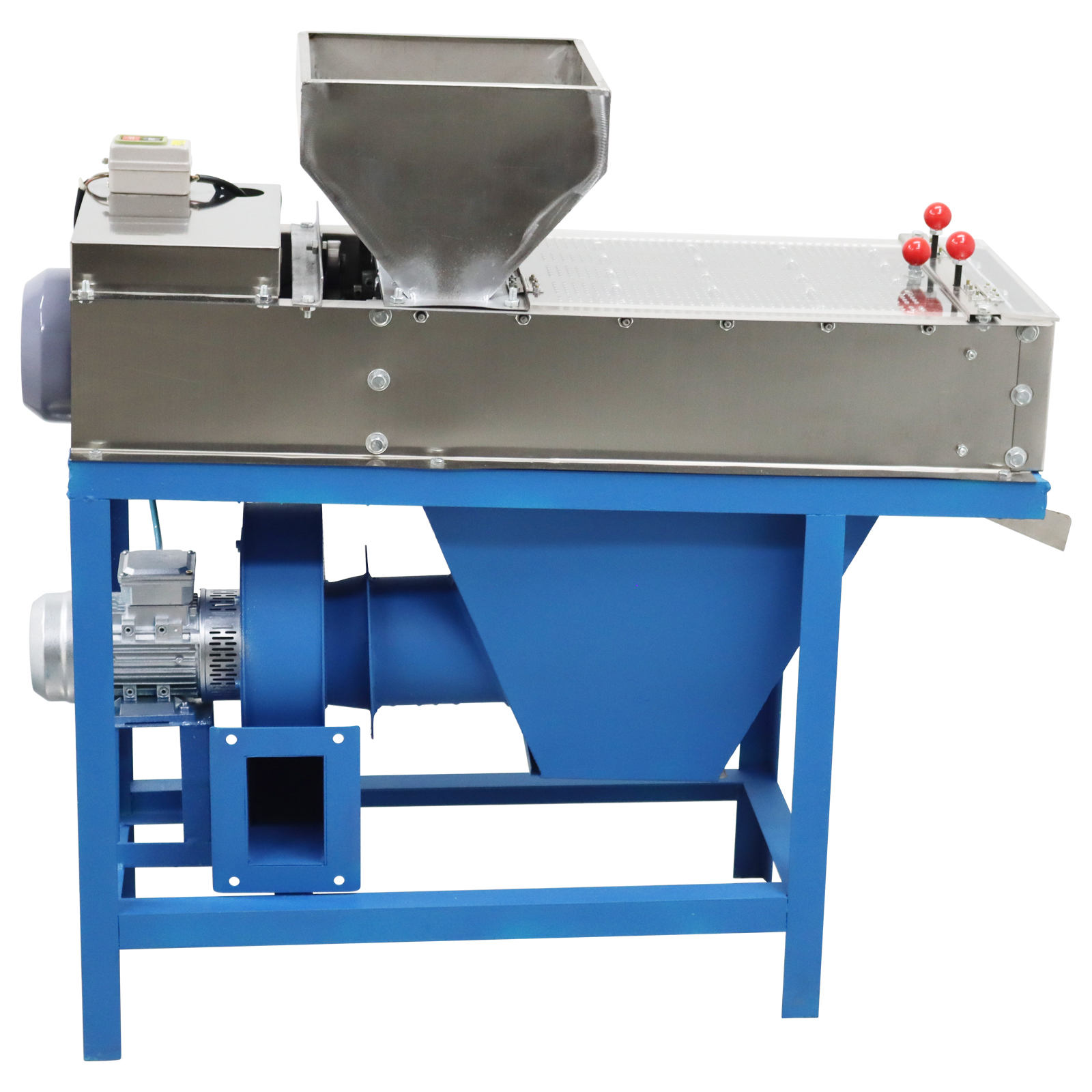

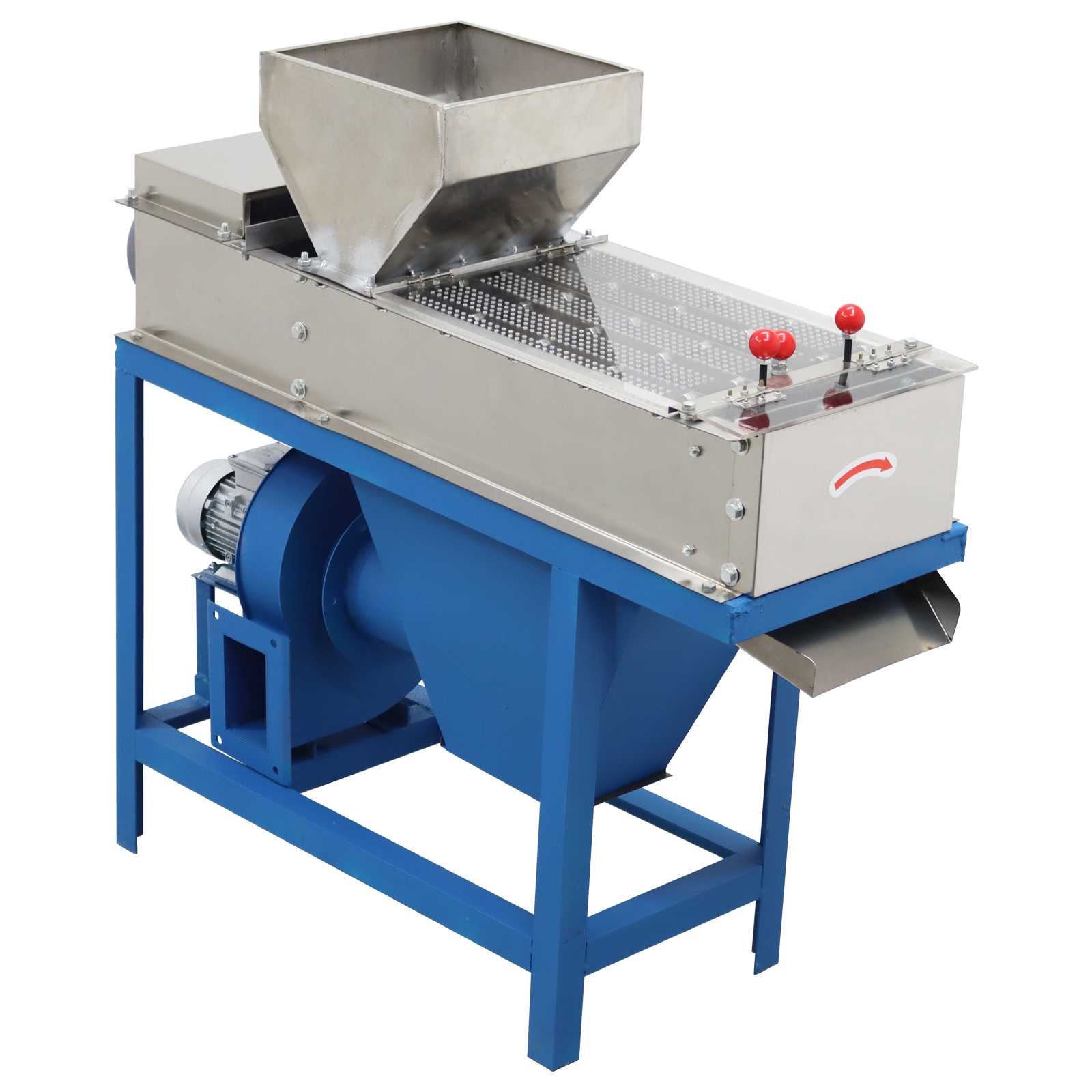

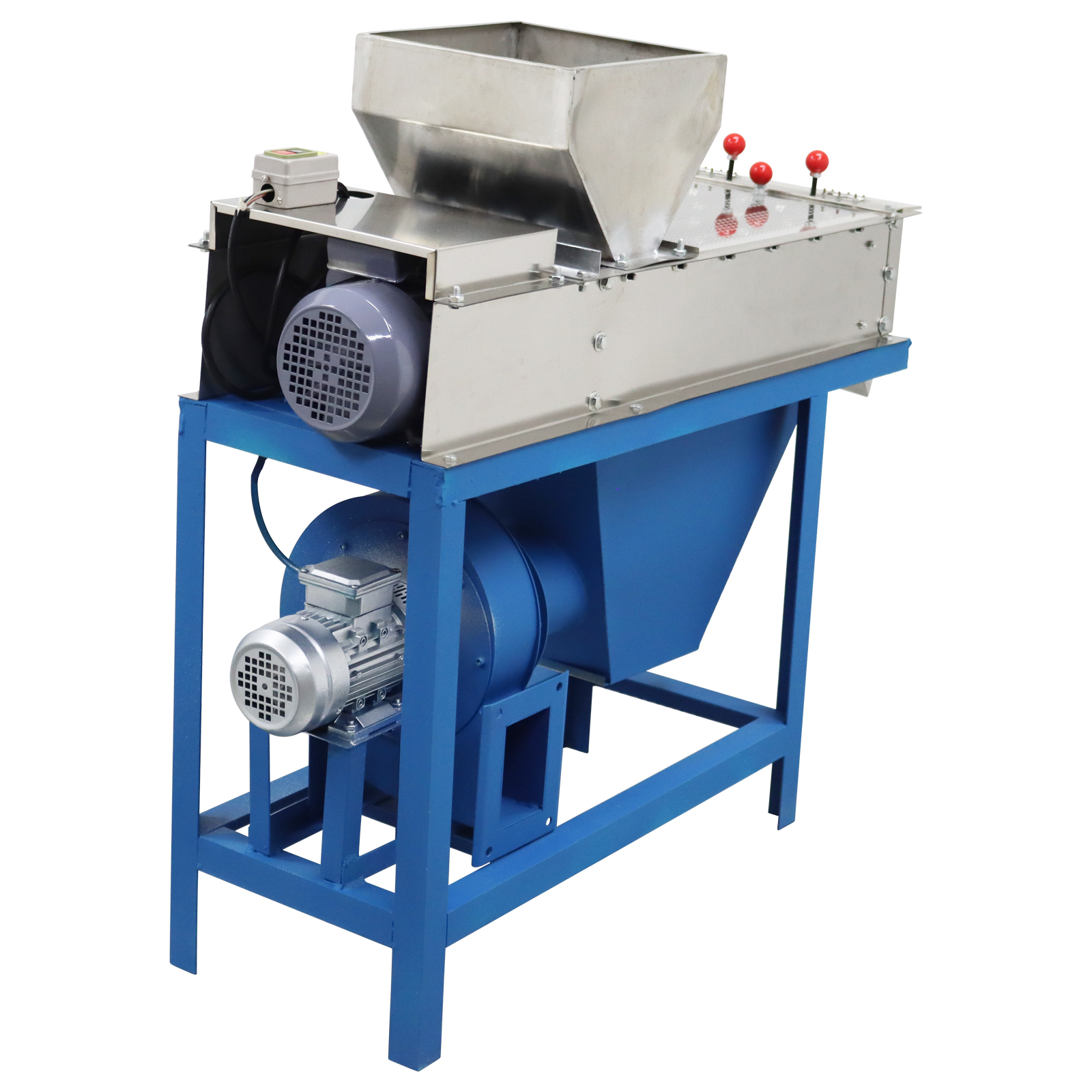

Product display:

You can make order with no worry.
Any concerns just feel free to let us know, we'll reply in 24 hours in normal condition.
Handling Time: Shipping is usually made in 1-3 business days after payments cleared. Orders are processed from Monday-Friday; Not on the weekends & public holidays.
Warranty: 6 months' warranty for the machines, not for the consumables.
We stand behind our products all the item, so even if your warranty period has expired, you can still seek for service or technical support from us with low cost.
