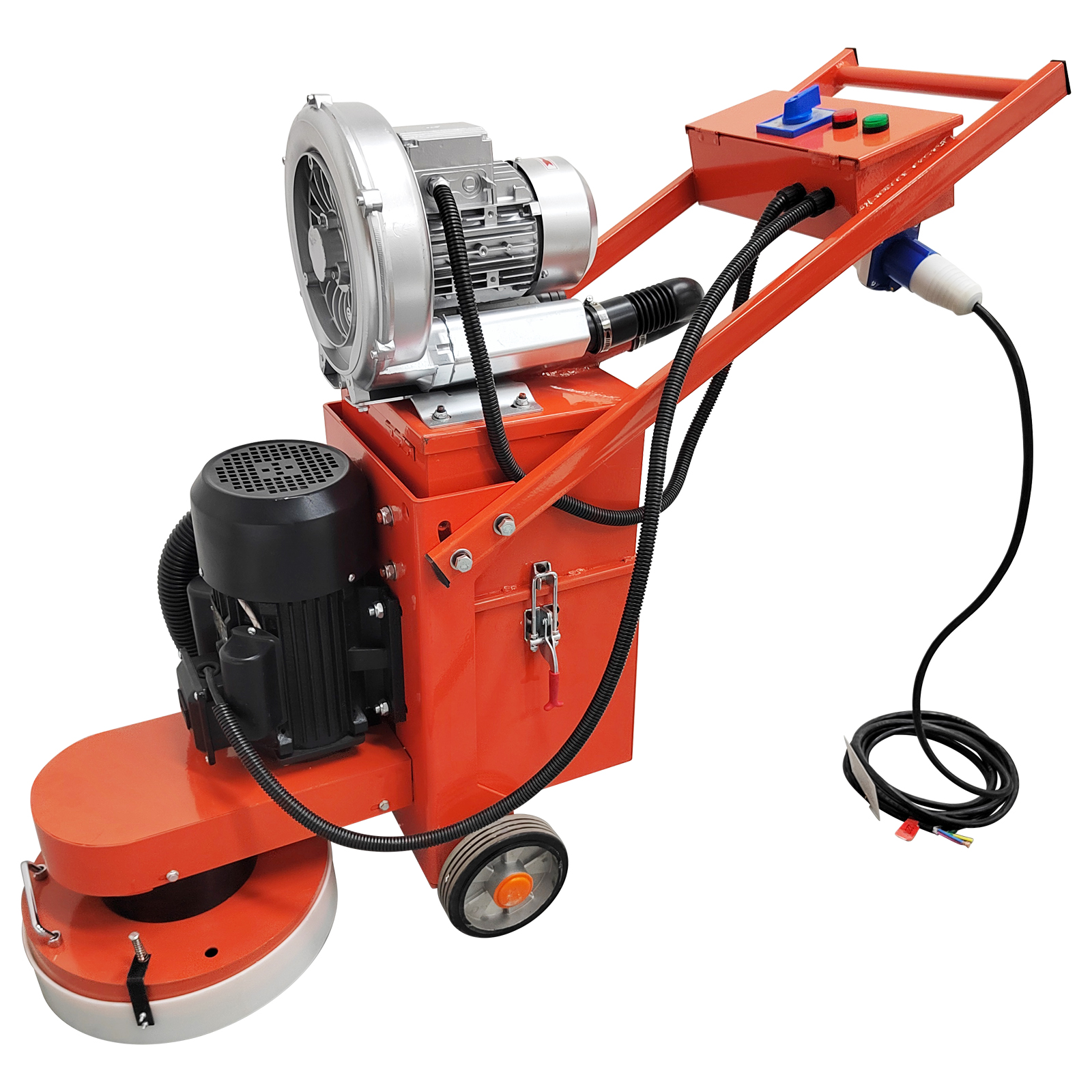

Hand-push Cement
Ground Grinder 220V |
|
|
|
|
|
|
|
Note：The ground polishing
machine cannot polish the ground where glue exists. |
 |
|
Features 1. The pure copper motor is
of high quality and the product is sturdy and durable. The new
stator and rotor of the motor can easily realize the conversion of
electrical energy and
mechanical energy.
2.The diamond chassis is sharp, hard, resistant to wear and high in work
efficiency and
quality.
3.High performance, stable life, long service life.
4.Highly adaptable cement floors can also be fully hardened and work can
be done at the
root of the wall.
5.With dust suction fan, dust-free operation.
6.The plate and grinding head can be replaced for grinding, polishing,
rust removal and paint
removal. |
|
Parameter |
|
|
Voltage |
220V |
|
Power |
4KW |
|
Fan Power |
750W |
|
Work Efficiency |
2500m²/8h |
|
Dust Bin Volume |
20L |
|
Work Depth |
0-3mm |
|
 |
|
Details |
 |
 |

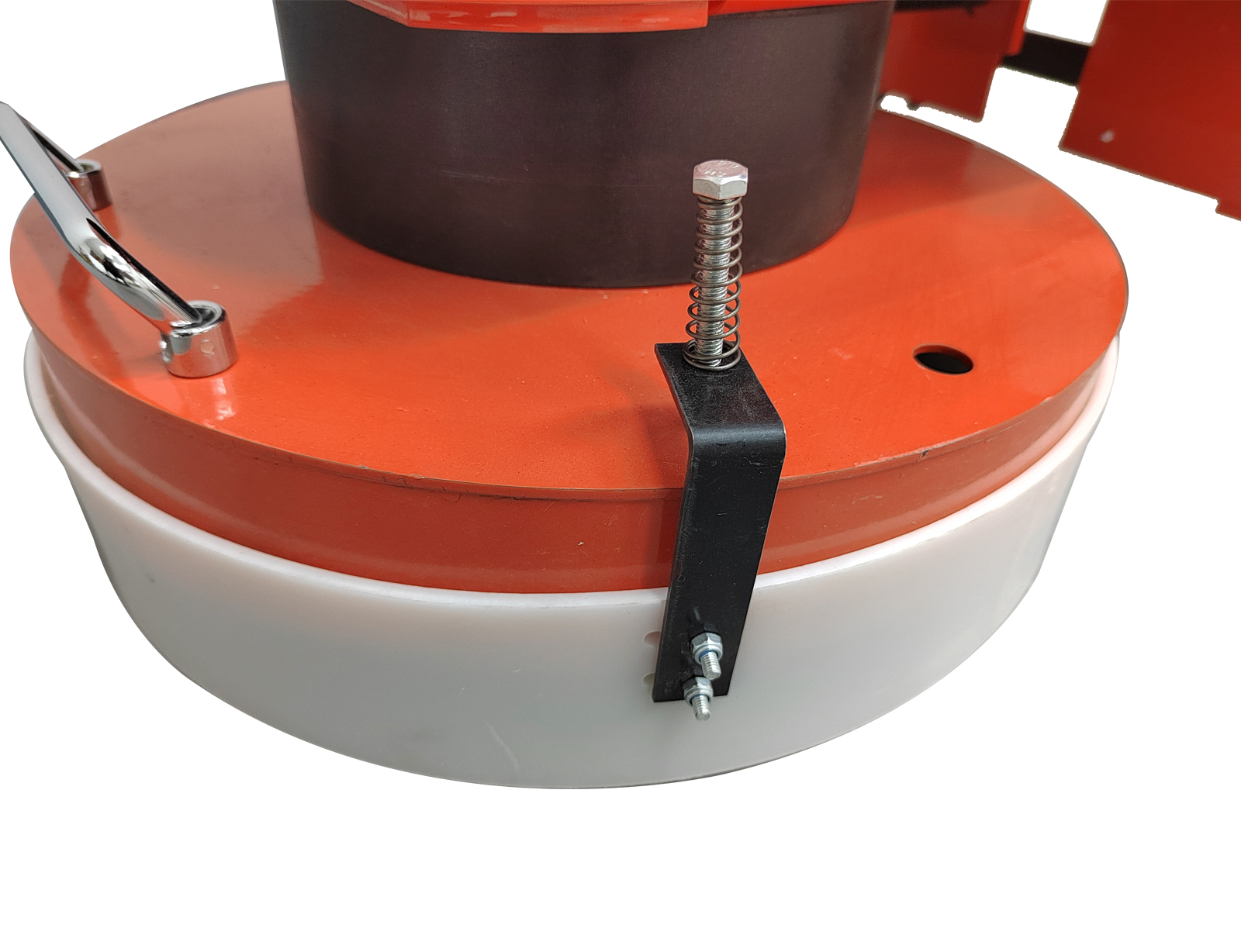

Dust shield, can automatically adjust the
height according to the ground height. |

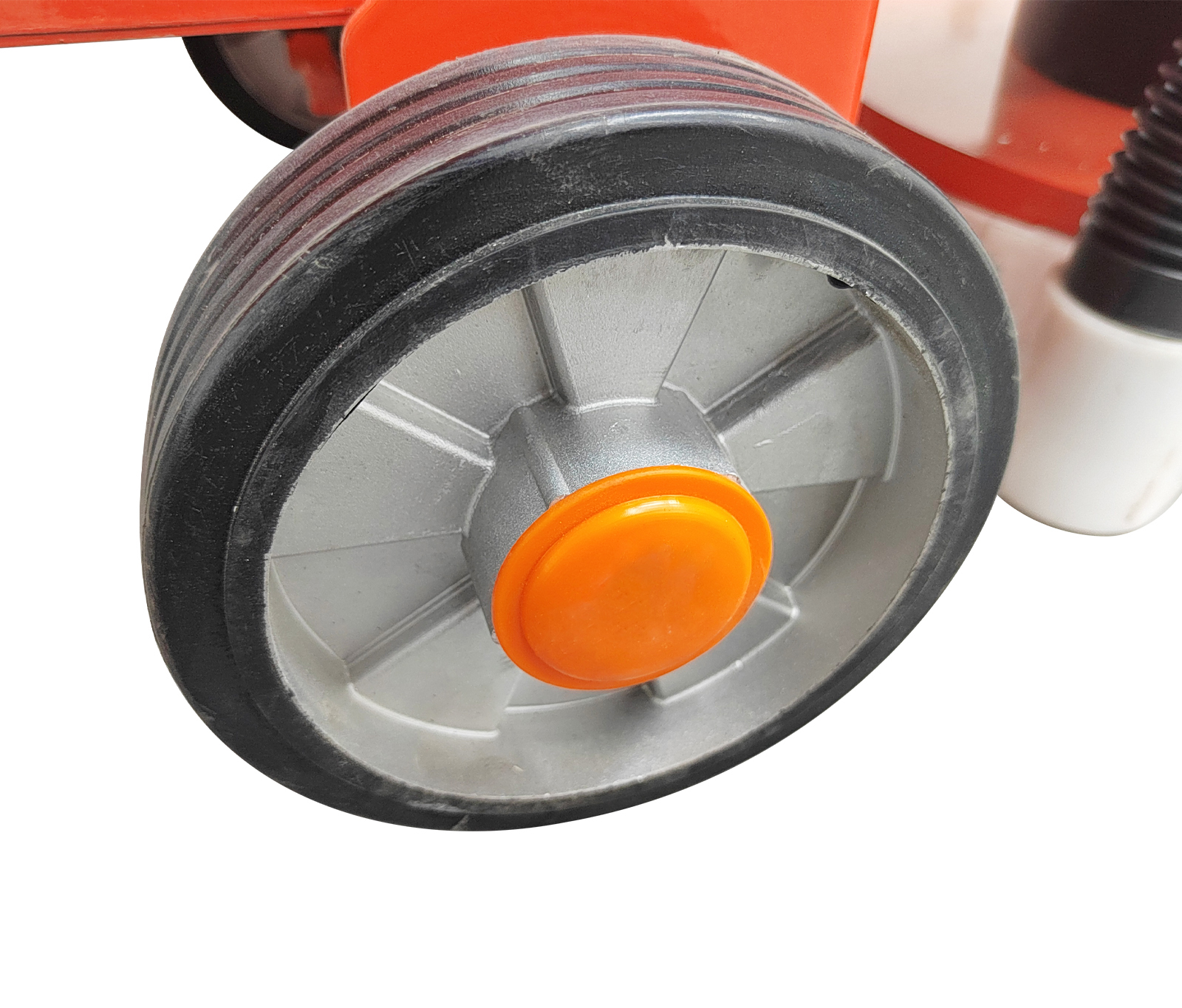

Rubber damping wheel, running more
smoothly. |
 |
 |

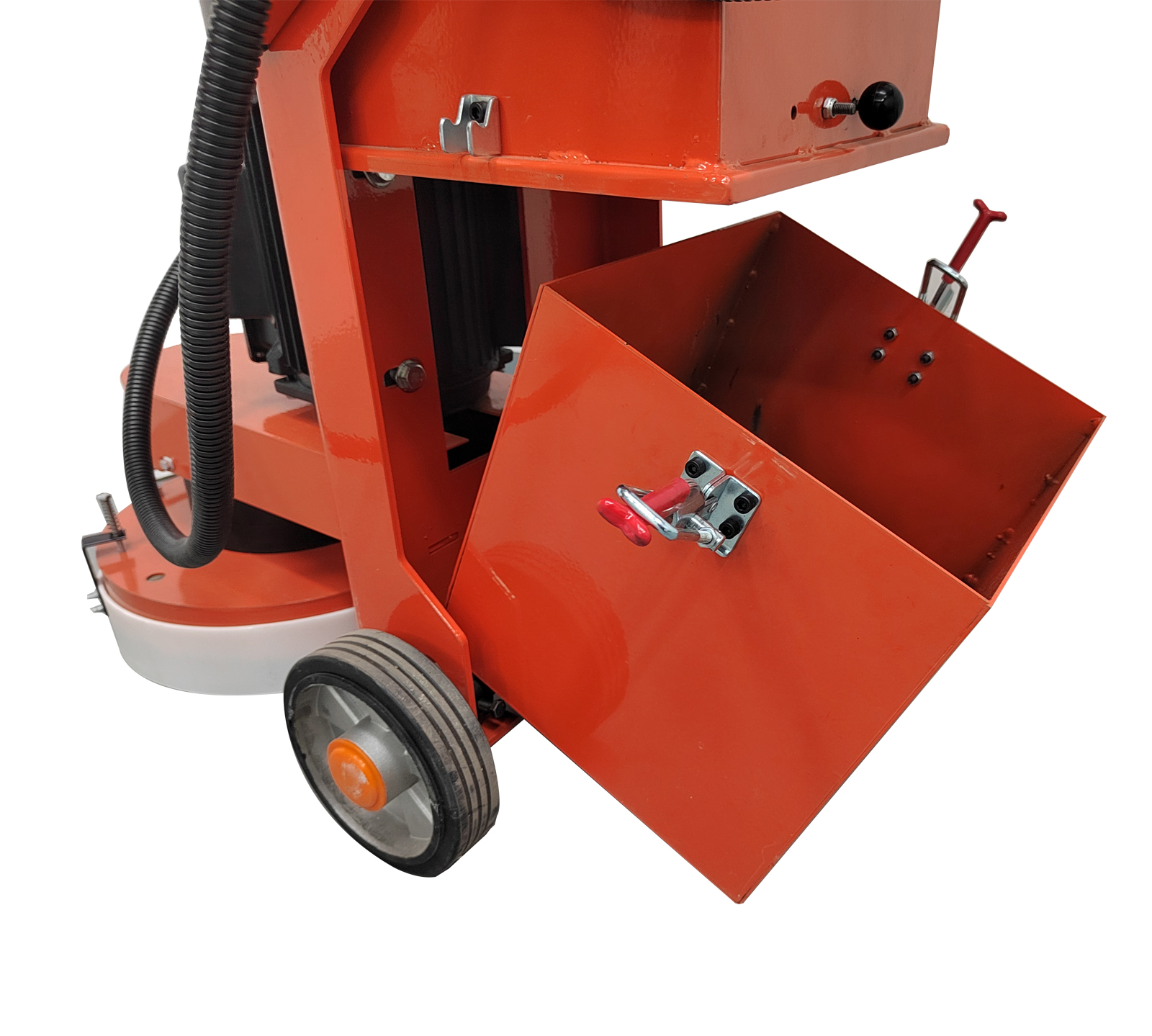

20L large-capacity dust collection box, without
frequent cleaning. |

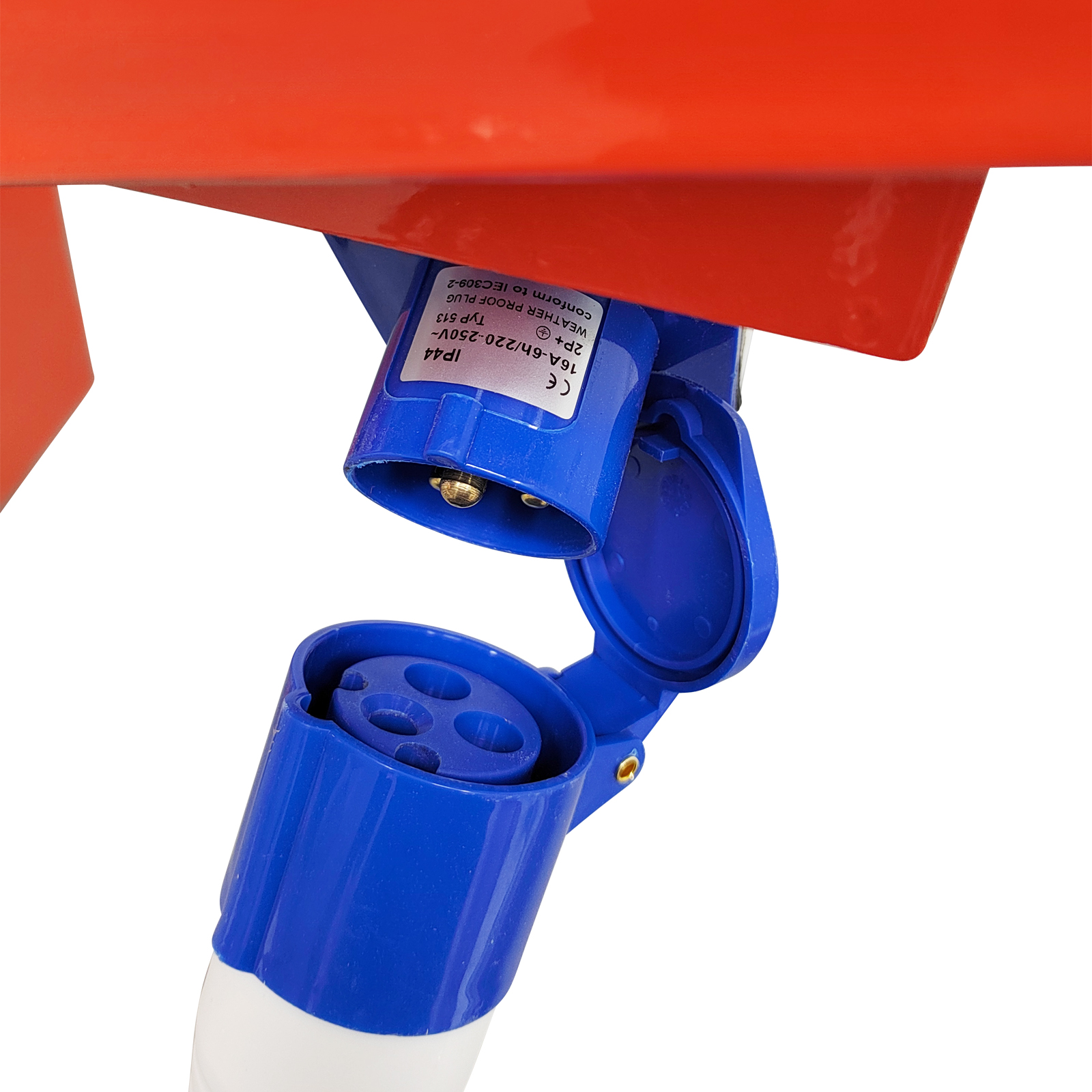

Aviation plug, safe to use, fast and efficient
connection. |
 |
 |
|

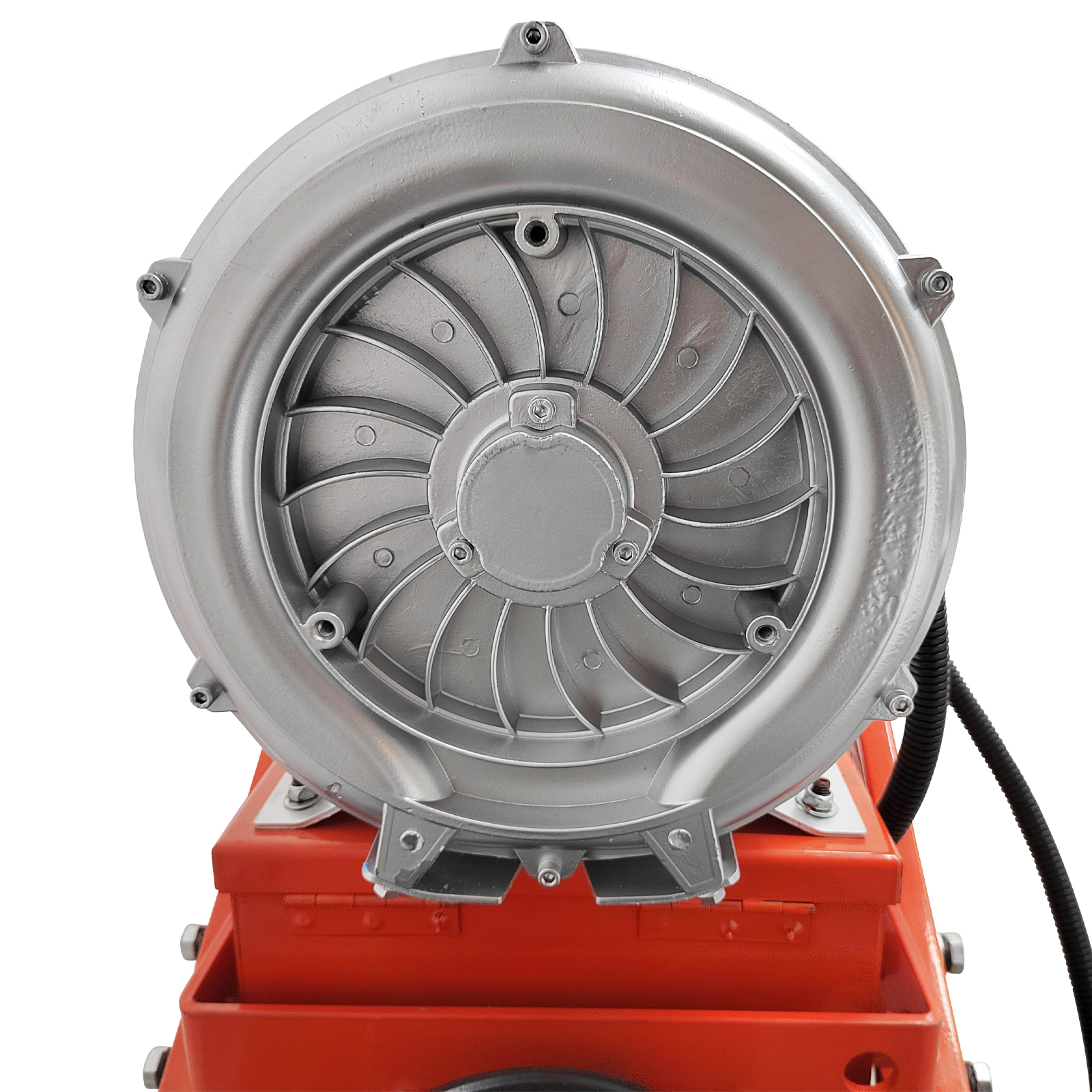

High power fan, good dust absorption effect. |
Special dust removal device, gently pull, dust
will fall. |
 |
|
|
 |
Give away 5 meters of wires. The maximum
length of the wire
connected to the machine can be 90 meters. The specification is three-
core wires. Each wire should not be less than 6 mm ² of pure copper
wire. The wire must be connected to the air switch, and the rated
current of the air switch is about 63A. As shown in the picture of
wiring
mode, please contact us if you have any questions. |
|
Precautions for use |
1. The input voltage should not be too low.
2. When using, first lift the machine head off the ground,and then turn
on the switch. When
the machine head rotates normally, gently place it on the ground.
3. When working, the machine head swings left and right,then moves
forward, and cannot
stop in place.
4. In case of power failure during operation, the switch should be reset
and cannot be
stopped at the original position to avoid burning the motor when the
power is on.
5.If a generator is used to provide power, the output power of the
generator must be at least
12KW. |
 |

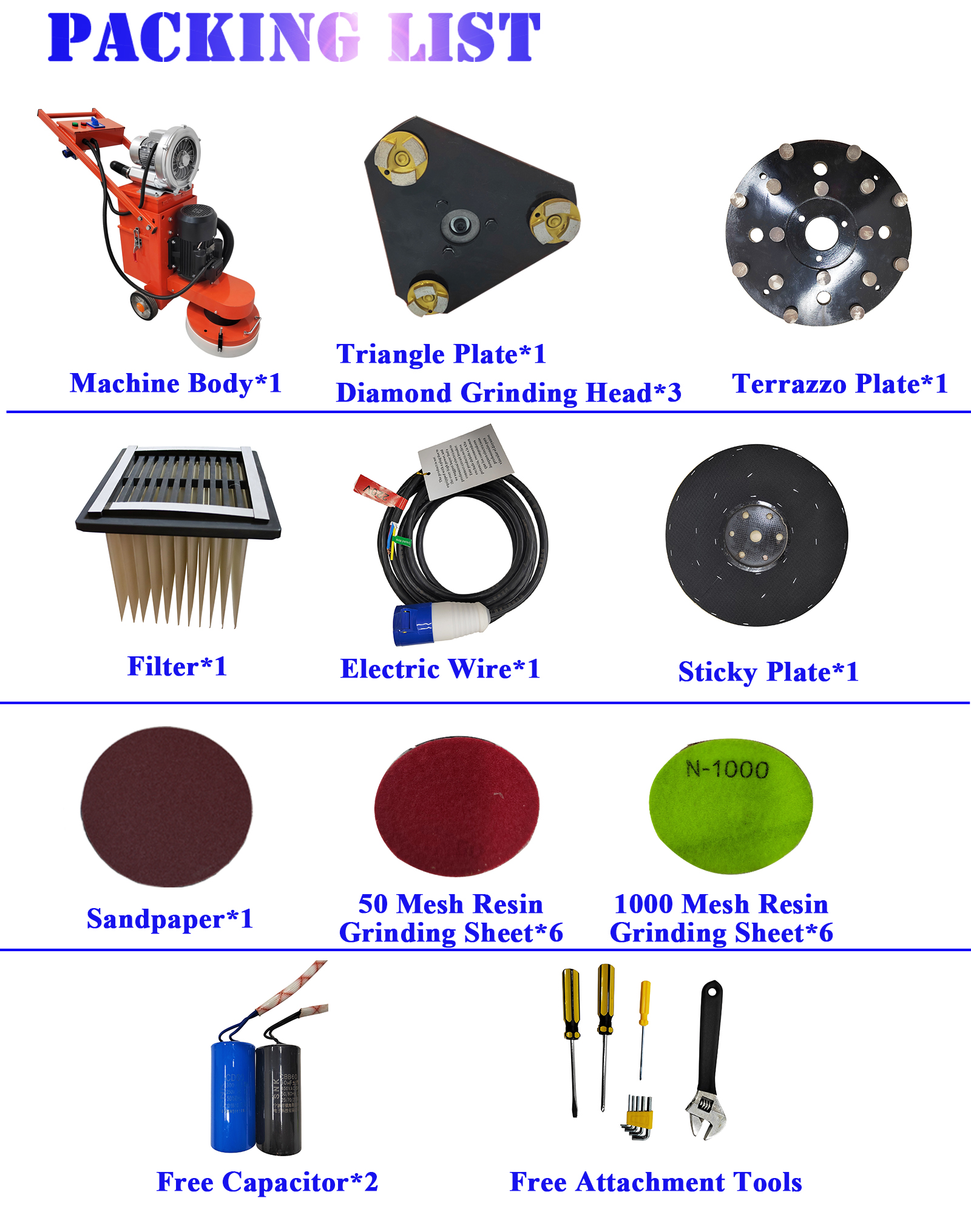

Note:Different grinding head is suitable
for different ground, this machine comes with a set of diamond grinding
head, terrazzo
plate,resin
grinding disc, sandpaper, grinding special ground or need other grinding
head, please contact us in advance. |
|
Item Number: Hand-push Cement Ground
Grinder 220V 238224 |
|
|
You can make
order with no worry.
Any concern just feel free to let us know, we'll reply in 24 hours in
normal condition.
Handling Time: Shipping is usually made in 1-3 business days after
payments cleared. Orders are processed from Monday-Friday; Not on the
weekends & public holidays.
Warranty: 6 months' warranty for the machines, not for the consumables.
We stand behind our products all the item, so even if your warranty
period has expired, you can still seek for service or technical support
from us
with low cost. |
