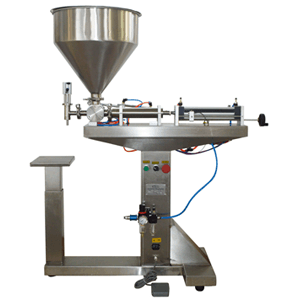

110V 5-100ml Paste  Liquid Filling Machine With Stand

https://buyyou.net/cbe/data/prd/160/435/1.jpg

This product is designed for liquids , pasty  fluid , oil , and thin food products. It can help you to fill a mount of  quantitative liquids or pasty fluid.

https://buyyou.net/cbe/data/prd/160/435/3.jpg

The filling volume range is between 5ml  - 100ml. And the machine should connect air compressor for working. First  time when you use the machine , you should weigh the weight of output by  adjusting and make sure the volume you want.

https://buyyou.net/cbe/data/prd/160/418/9.jpg

Feature:

1. Voltage: 110V/60Hz
2.
The surface is  stainless steel
3. Full pneumatic
4.
Filling volume (ml): 5 - 100
5. Filling accuracy (FS): ±0.5%
6. Production capacity (cycle/min): 1-25
7. Applicable tolerance (m3/min): ≥0.1
8. Exterior sizes:
37.80*14.96*13.78" (96*38*35 cm)

9. Net weight (kg):27kg (65 lb)

10. Applicable pressure (Mpa): 0.4-0.9

https://buyyou.net/cbe/data/prd/160/418/312.jpg

 1. Air supply treatment
 2. Power socket
 3. Power on/off
 4. Inching/auto option switch
 5. Inching switch jack
 6. Filling volume regulation
hand wheel
 7. Magnetic switch (back)
 8. Fastening screw
 9. Piston
 10. Cartridge
 11. Rotary disk valve
 12. Discharge nozzle
 13. Emergency stop switch
 14. Cartridge cylinder
 15. Rotary disk cylinder
 16. Hopper

https://buyyou.net/cbe/data/prd/160/435/2.jpg





https://buyyou.net/cbe/data/prd/160/435/4.jpg

https://buyyou.net/cbe/data/prd/160/435/0000.gif

Item# Description QTY Unit
160437 110V 5-100ml Paste Filling  Machine with Stand 1 Set
