160408:110V Liquid Paste Filling Machine 1000-5000ml
Unit:
set
Price:
C $1499
Weight:
57.00kg
QTY:
Out Of Stock


Similar products

160400:110V 80ml-1000ml Paste Liquid Filling Machine

160402:110V Liquid Filling Machine - Dual Nozzle

160404:110V Paste Liquid Filling Machine 500ml Paste Filling Machine

160403:1000ml 2 Nozzles Paste Liquid Filling Machine

190202:110V High Temperature Stand-up Filling Machine

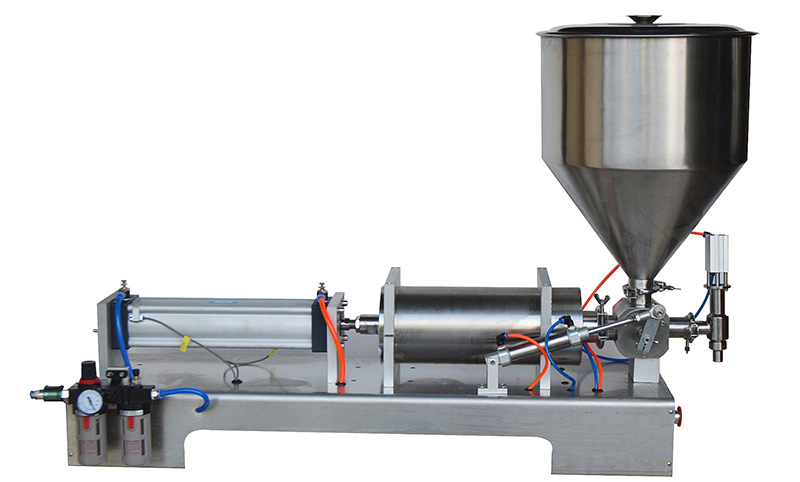

110V Paste Liquid Filling Machine

This product is designed for liquids , pasty fluid , oil , and thin food products. It can help you to fill a mount of quantitative liquids or pasty fluid.

The filling volume range is between 1000ml - 5000ml. And the machine should connect air compressor for working.First time when you use the machine , you should weigh the weight of output by adjusting and make sure the volume you want.

Feature:

1. Voltage: 110V/60Hz
2.
The surface is stainless steel
3. Full pneumatic
4.
Filling volume (ml): 1000-5000ml
5. Filling accuracy (FS): ±0.5%
6. Production capacity (cycle/min): 1-25
7. Applicable tolerance (m3/min): ≥0.1
8. Exterior sizes:
49.2"x16.5"x18.9" (125*42*48 cm)
9. Net weight:
57kg (125 lb)
10. Applicable pressure (Mpa): 0.4-0.9

 1. Air supply treatment
 2. Power socket
 3. Power on/off
 4. Inching/auto option switch
 5. Inching switch jack
 6. Filling volume regulation
hand wheel
 7. Magnetic switch (back)
 8. Fastening screw
 9. Piston
 10. Cartridge
 11. Rotary disk valve
 12. Discharge nozzle
 13. Emergency stop switch
 14. Cartridge cylinder
 15. Rotary disk cylinder
 16. Hopper




Package Include (160408)

  1. 1x Liquid Filling Machine

  2. 1x Piezometer

  3. 1x Funnel

  4. 1x Pipe

  5. 1x Spare Screw

  6. 1x Specification

  7. 3x Screw Driver

  8. 1x Foot Plate

  9. 5x Spacer Sheet

  10. 1x Power Cord

Liquid filling machine main body

Funnel

Piezometer

Pipe

Spare screw

Specification

Screw Driver

Foot Plate

Spacer sheet(x5)

Power cord
