160400:110V 80ml-1000ml Paste Liquid Filling Machine
Unit:
set
Price:
C $999.00
Weight:
34.30kg
QTY:


Similar products

160402:110V Liquid Filling Machine - Dual Nozzle

160404:110V Paste Liquid Filling Machine 500ml Paste Filling Machine

160403:1000ml 2 Nozzles Paste Liquid Filling Machine

160406:110V Liquid Filling Machine 500ml

160408:110V Liquid Paste Filling Machine 1000-5000ml

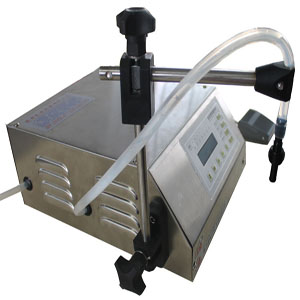

110V Paste Liquid Filling Machine

This product is designed for liquids , pasty fluid , oil , and thin food products. It can help you to fill a mount of quantitative liquids or pasty fluid.

The filling volume range is between 80ml - 1000ml. And the machine should connect air compressor for working. First time when you use the machine , you should weigh the weight of output by adjusting and make sure the volume you want.

Feature:

1. Voltage: 110V/60Hz
2.
The surface is stainless steel
3. Full pneumatic
4.
Filling volume (ml): 100 - 1000
5. Filling accuracy (FS): ±0.5%
6. Production capacity (cycle/min): 1-25
7. Applicable tolerance (m3/min): ≥0.1
8. Exterior sizes:
44.7"x15.4"x13.6" (113.5x39x34.5 cm)
9. Net weight (kg):
34.5kg (75.9 lb)
10. Applicable pressure (Mpa): 0.4-0.9

?1. Air supply treatment
?2. Power socket
?3. Power on/off
?4. Inching/auto option switch
?5. Inching switch jack
?6. Filling volume regulation
hand wheel
?7. Magnetic switch (back)
?8. Fastening screw
?9. Piston
?10. Cartridge
?11. Rotary disk valve
?12. Discharge nozzle
?13. Emergency stop switch
?14. Cartridge cylinder
?15. Rotary disk cylinder
?16. Hopper




Package Include (160400)

  1. 1x Liquid Filling Machine

  2. 1x Piezometer

  3. 1x Funnel

  4. 1x Pipe

  5. 1x Spare Screw

  6. 1x Specification

  7. 3x Screw Driver

  8. 1x Foot Plate

  9. 5x Spacer Sheet

  10. 1x Power Cord
