Desktop Fully Automatic Double Head
Paste Filling Machine |
|
|
|
|
|
|
|
This
fully automatic paste filling machine has functions such as automatic
conveying, automatic filling, no bottle no filling, stuck bottle
positioning, dripping prevention and lifting filling.
This machine has a
beautiful and elegant appearance, is intelligent, and has a high
qualification rate. It is suitable for filling different bottle types in
industries such as food, daily chemicals, pesticides and cosmetics.It can be used for both stand-alone production and online
production.
This machine adopts
piston quantification, and integrates electromechanical and pneumatic
components. The electrical and pneumatic components are selected from
excellent brands, with reasonable design, compact structure, beautiful
appearance, stable and reliable performance, high filling accuracy,
strong adaptability, simple operation, and convenient maintenance.
This machine has the characteristics of stable and reliable performance,
high filling accuracy, strong adaptability, simple operation, and
convenient maintenance.
This machine can be
used to fill semi fluid, paste, viscous body, sauce and various
materials containing small particles, such as honey, syrup, jam, peanut
butter, sesame paste, tomato paste, broad bean paste, shrimp paste, Apple
sauce, Salad dressing, Caviar and other various paste and liquid
materials. |
|
 |
|
1.The filling volume range is 10ml - 100ml. And the machine
should be connected with air compressor for working. When you use the
machine for the first time, you should adjust and weigh the output
quantity and make
sure the volume you want.
2.This series of models need to be equipped with
external air compressor, air compressor exhaust should not be less than
0.1m3/min, and the pressure should be adjustable within the range of
0.4-0.9Mpa.
(Note1:We only sell
machines, do not be equipped with air compressors, customers need to buy their
own.)
(Note2: If you are not sure whether the material is suitable for filling
conducted by this machine, please consult us before placing an order)
|
|
Product parameter: |
 |
 |
|
Voltage: |
110V/60Hz |
| Power: |
150W |
|
Material: |
The
surface is stainless steel |
| |
Pneumatic |
|
Filling volume (ml): |
10-100ml |
|
Filling accuracy (FS) |
±0.5% |
|
Production capacity (cycle/min): |
5-10 |
|
Machine body: |
23.6"x40.15"(60x102cm) |
| Hopper
capacity： |
50L |
|
Applicable pressure (Mpa): |
0.4-0.9 |
|
|
Product analysis: |
 |
 |
|
1.Hopper（50L）
2.Conveyor belt guardrail adjustment knob
3.Conveyor belt guardrail
4.Chain plate conveyor belt
5.Touch screen
6.Start switch
7.Emergency stop
8.Conveyor belt controller
9.Blocking cylinder
10.Main power switch
11.Positioning cylinder
12.Filling nozzle
13.Receiving tray
14.Filling head lifting handwheel
15.Bottle lifting handwheel
16.Height adjustment knob of bottle measuring sensor
17.Fiber Amplifier
18.Conveyor belt motor
19.Filling machine adjustment handwheel
20.Filling machine cylinder
21.Filling machine material cylinder
22.Receiving tray slide
23.Filling machine discharge assembly
24.Bottle entry photoeye
25.Bottle discharge eye |
|
Feature: |
|
|
The barometer and the air inlet, the
air inlet is connected with the air compressor, easy to operate, stable. |
|
Magnetic switch, the use of hand wheel
rotation to adjust the filling amount, easy to operate. |
 |
 |
Adjust the rocker
filling precision
Hand-cranking handle, you can
adjust the amount of filling, easy to operate.
|
|
Emergency
stop switch
The emergency stop
button stops the machine immediately.
|
 |
 |
Discharge assembly,
drip proof design
Filling nozzle, made of
stainless steel, accurate filling without plugging, it is removable for
easy cleaning and maintenance.
|
|
This machine is equipped with a
high-quality mixing motor, which is more durable. |
 |
 |
The machine is equipped with a speed
regulator, which can adjust the mixing speed according to customer
needs. |
|
Intelligent touch operation panel,
intuitive data, simple operation, and can adjust parameters at any time
as required. |
 |
 |
The machine is equipped with buckles
for easy disassembly and cleaning. |
|
This machine is equipped with an
adjustable guardrail knob, which can adjust the width and height of the
guardrail according to the diameter and height of the bottle, making it
more convenient. |
 |
 |
This machine is equipped with lifting
handwheels, and customers can adjust the height of the held bottle by
adjusting the 1st and 3rd handwheels according to their own needs. The
height of the filling head can be adjusted through the 2nd handwheel. |
|
Product
safety precautions: |
|
To ensure safe production, please read the
following precautions carefully:
1. Use a power supply and air source that conform to the requirements
of this machine . The stability of the air source must be maintained
under continuous working conditions.
2. Before disassembling, washing or repairing this machine, please be
sure to turn off the air source and power supply first.
3. The machine body must not be washed directly with water under any
condition, otherwise there will be danger of electric shock and damage
to the electrical control components.
4. After the power switch is turned off, there is still voltage in some
circuits in the electrical control of this machine. When repairing the
control circuit, please be sure to unplug the power cord.
5. Do not keep your eyes close to the filling head during work, pay
attention to personal safety.
6. Do not put your hand on the central shaft of the cylinder during the
work process, pay attention to pinching your hands.
7. Before using materials for filling, it is best to clean the machine
with detergent first, and then clean it with clean water, so as to
prevent oil stains or foreign material from being mixed with materials, which will lead to
waste of materials and damage to the machine.
When the paste filling machine is not working, please close the
dustproof cover of the hopper to prevent dust or other debris from
entering the hopper and causing material waste and machine damage. |
|

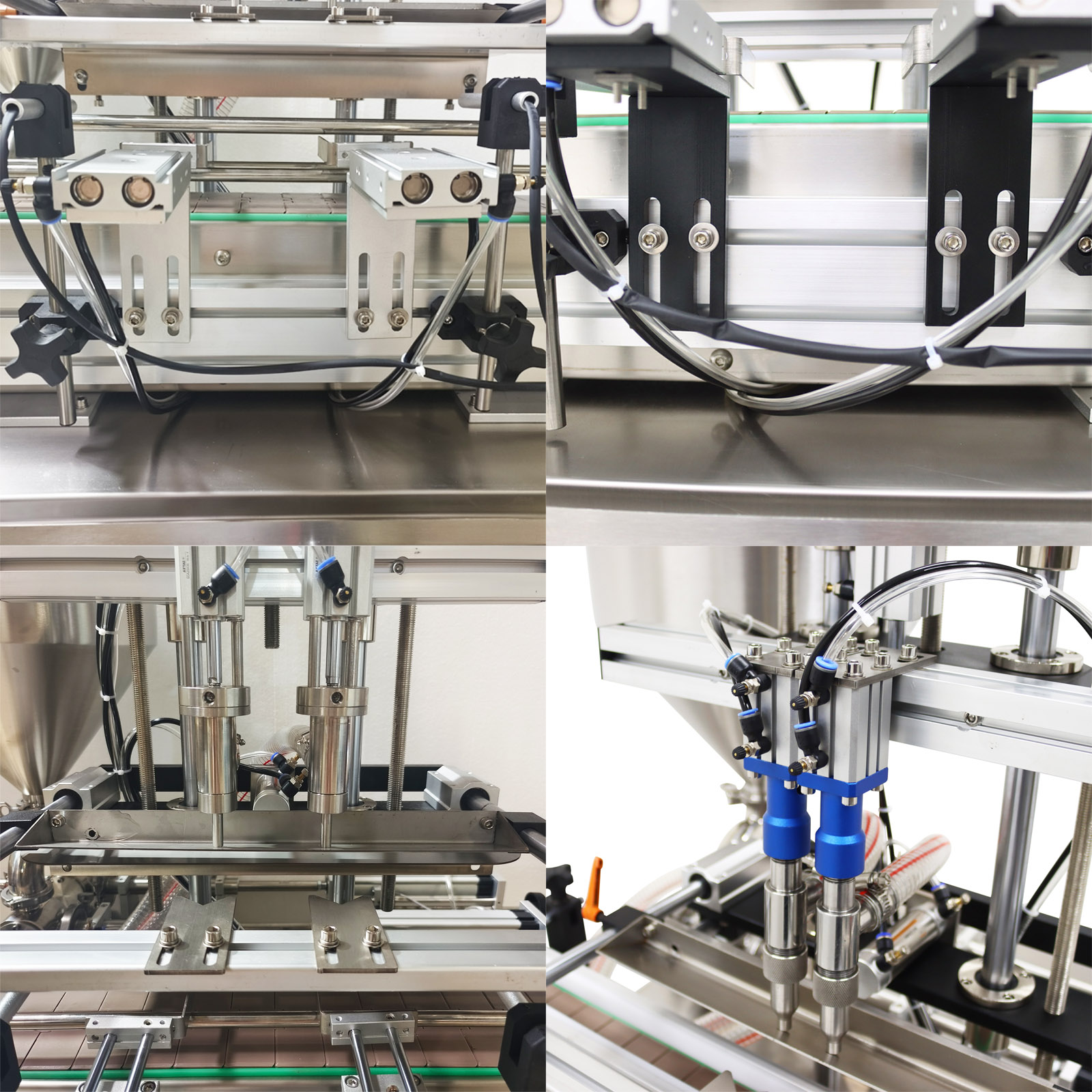

Details: |
|
 |
 |
|
 |
 |
 |
 |
|
Precautions for product use: |
|
1.The body of this
machine is made of stainless steel, please do not use sharp or hard
tools to scratch its surface.
2. The cylinder has been lubricated before leaving the factory. Please
do not open the cylinder or add any lubricating oil.
3. Before cleaning the piston filling machine, remove the Surplus
product in the charging cylinder and tee, and then fill the water tank
with soft cleaning liquid. Our company recommends using warm water. If
necessary, soap water, alcohol, or other cleaning liquids can be used.
4.Cleaning
requirements:
When cleaning, it is important to ensure that the piston sealing ring is
properly installed. Turn on the machine and let it cycle filling until
it is clean. This cleaning is relatively simple and can be used in
situations with low requirements. In high demand situations, all
components that come into contact with the material should be thoroughly
cleaned, including the material cylinder, piston, piston sealing ring,
three-way valve, filling head, feed pipe, discharge pipe, etc. When
cleaning all sealing rings, it should include the sealing rings of the
piston and the flat sealing rings of the valve, and replace the broken
and damaged sealing rings. |
|
Product display: |
 |
 |
|
Item include:Desktop Fully Automatic
Double Head Paste Filling Machine*1 |
|
Item Number: 160381 |
|
|
You can make order
with no worry.
Any concerns just feel free to let us know, we'll reply in 24 hours in
normal condition.
Handling Time: Shipping is usually made in 1-3 business days after
payments cleared. Orders are processed from Monday-Friday; Not on the
weekends & public holidays.
Warranty: 6 months' warranty for the machines, not for the consumables.
We stand behind our products all the item, so even if your warranty
period has expired, you can still seek for service or technical support
from us with low cost. |
|
