LT-150 Fully
Automatic Desktop Chain Plate
Conveyor Round Bottle
Fixed Point High
Speed Coding and
Labeling Machine |
|
The
machine is beautiful, smart, and has a high qualification rate. It is
suitable for labeling and coding in cosmetics, beverages, medicine,
food, general merchandise and other industries.
The design of the machine is novel and unique, and the operation and
adjustment are very convenient. The operator only needs to place the
bottle on the conveyor belt，when the bottle moves forward, the cursor
will automatically label and mark the bottle after detecting it.
It can be used for both stand-alone production and online production. |
|
 |
|
Product parameter: |
 |
|
Voltage: |
110V/60Hz |
|
Material: |
The
surface is stainless steel |
|
Conveyor width:
|
3.93in(10cm) |
| Conveyor belt length: |
42.9IN(109CM) |
| Label inner diameter： |
2.95in(7.5cm) |
| Label outer diameter: |
9.45in(24cm) |
| Label out: |
Left bid |
|
Output speed: |
20-30PCS/min (Depending on
the bottle size and label length) |
| Suitable bottle diameter: |
0.78-4.72in(2-12cm) |
|
Label height： |
0.98-5.9in(2.5-15cm) |
| Label length： |
0.98-13.78in(2.5-35cm) |
| Precision: |
±0.039in（1mm) |
| Power: |
800W |
|
Package: |
Export wooden case |
|
|
Product Analysis： |
 |
|
1. Label plate
2. Signing
wheel
3. Guardrail
4. Conveyor
belt
5. Adjusting
knob for guardrail width
6. Height
adjustment knob for guardrail
7. Fiber optic
amplifier
8. Lifting and
lowering the foundation
9. Touch screen
10. Start
switch
11. Power
switch
12. Emergency
stop switch
13. Conveyor
Belt Governor
14. Spoke speed
regulator
15. Wheel spoke
distance adjustment handle
16. Bottle
fixing cylinder
17. Spoke
lifting adjustment handle
18. Receiving
tray
19. Spoke motor
20. Detection
of bottle photoelectricity
21. Spoke
lifting adjustment handle 2
22. Pull the
rubber plate
23. Head
lifting handle
24.Clamp
label axis handle
25.Marking motor
|
 |
|
Feature: |
|
|
Multi-rod spiral positioning prevents
deviation and makes the sheet more accurate. |
|
Adding vertex style bottle holding
labeling effectively solves the problem of bubbles during the product
labeling process. The labeling is flat and wrinkle free, and can be
applied. |
 |
 |
Spoke adjustment handle
Adjusting the two handles clockwise can move the spoke pressure plate
forward and upward. |
|
The label object is sensitive to
inspection, and the labeling efficiency is greatly improved. |
 |
|
 |
Photo-electric detection label, and the
label will be released immediately when the bottle is detected to pass. |
|
This machine is equipped with a fiber
optic amplifier, which can be adjusted by adjusting the fiber optic
amplifier when the photosensitive eye cannot sense the product well.
|
 |
 |

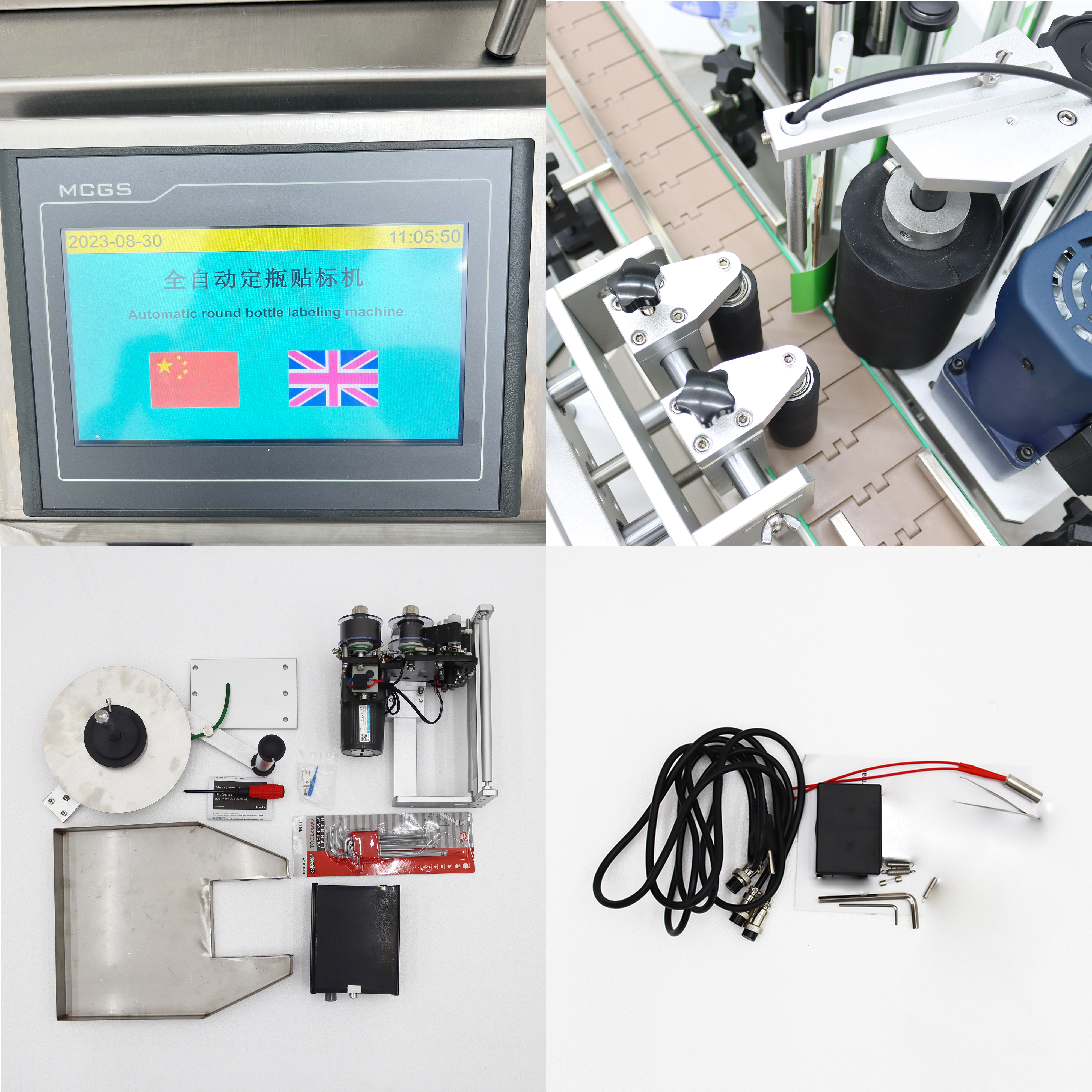

This machine is equipped with a touch
screen display, which allows customers to set relevant data according to
their needs, making it more convenient and efficient. |
|
This machine is equipped with an
emergency stop button, which can stop the operation of the machine with
one click in case of any emergency, making it safer and more reliable. |
 |
 |
This machine is equipped with a
high-quality conveyor belt motor, which is more durable. |
|
This machine is equipped with a chain
plate conveyor belt, which is more wear-resistant and has a longer
service life. |
 |
 |
This machine needs to be connected to
an air compressor for use (we only provide the machine and do not
provide an air compressor, which needs to be purchased by the customer) |
Print block
The word to be printed is placed in the word seat to realize the
printing function. |
 |
|
 |

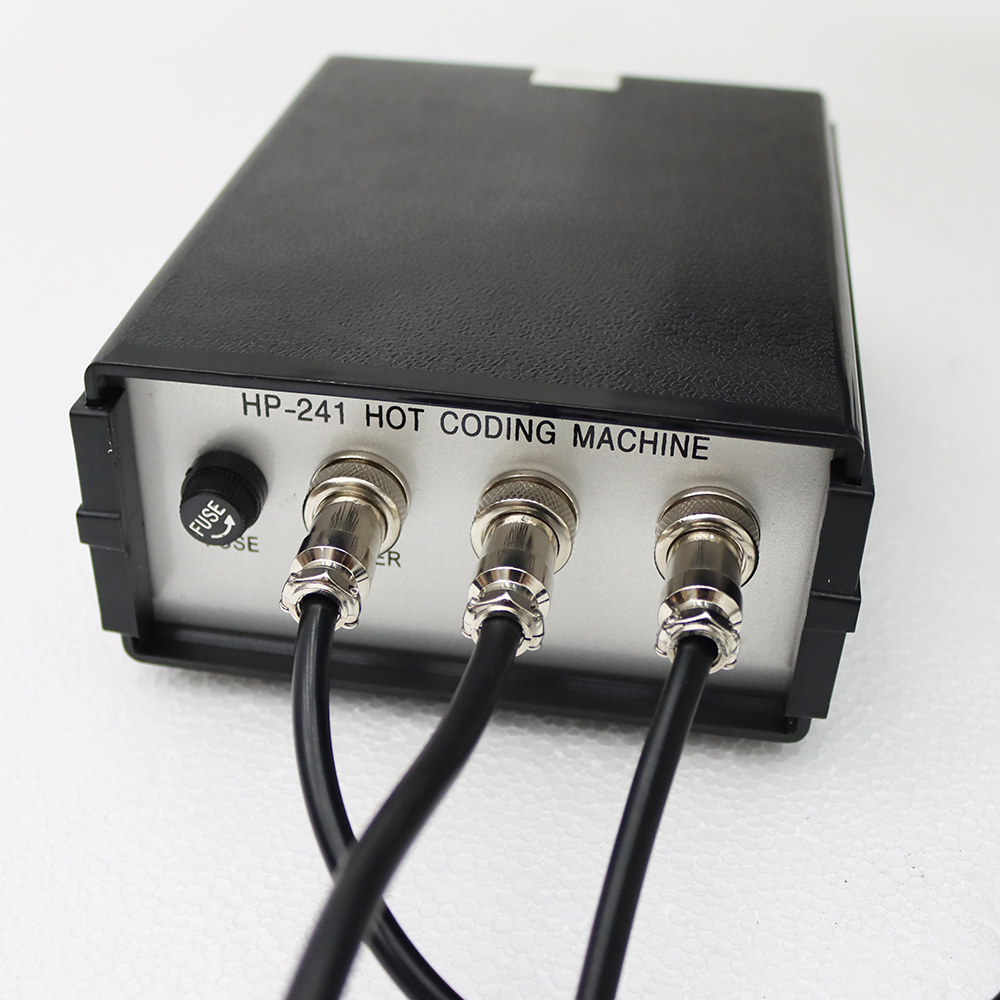

This machine is equipped with a coding
machine, which can achieve coding function. |
|
Product
safety precautions: |
To ensure safe production, please read the
following precautions carefully:
1. Use the power supply that meets the requirements of the machine.
2. After turning off the power switch, there is still voltage in some
circuits in the electrical control of the machine. When servicing the
control circuit, be sure to unplug the power cord.
3. Do not touch the rollers with your hands during machine operation,
and pay attention to personal safety.
4. When the machine has problems, press the emergency stop button
directly to suspend all work.5.Do not
touch the photoelectric induction eye with your hands during machine
operation to prevent the machine from missensing and mislabeling.
|
|
Operating steps： |
|
1.Check that the device's power supply is 110V and
ensure a stable power supply; turn on the air compressor and make sure
the pressure gauge reaches 0.6MPa (Note: The air compressor must be
provided by the user); check whether mechanical components such as the
conveyor belt are stuck by foreign objects and ensure all components
operate flexibly. 2.Confirm the front and
back of the label, wind the label as shown in the manual and fix the end
of the label; adjust the guide rings and lock the relevant wheels; press
the "Label Length" key and adjust the labeling parameters via the
photoelectric eye.
3.Use the label head lifting handle to adjust
the host height; adjust the wheel auxiliary mechanism to a slightly
clamped state and adjust the belt tightness; calibrate the photoelectric
eye to ensure the light is off when detecting labels and on when
detecting materials.
4.Operate via the touch screen, set parameters
such as interval time and label output protection as needed, and perform
tests when necessary to select appropriate parameters.
5.After starting the equipment, the optical
fiber senses the material, and after a delay, completes actions such as
bottle fixing and label output, with the equipment counting
automatically.
6.In case of abnormalities and shutdown,
troubleshoot according to the instructions, and the interval between
power on and off must exceed 30 seconds. |
|
Details: |
|
 |
 |
 |
 |
|
  |
|
Note：The coding machines of the two
above-mentioned colors will be shipped randomly (they only differ in
color, with completely identical functions). |
|
Advantages: |
|
1. The machine is efficient and convenient to use;
2. The machine automatically labels, saving manpower and material
resources;
3. This machine has wide applicability and stable performance;
4. This machine is equipped with intelligent touch control screen, which
is more convenient to set data parameters;
5. This machine can meet the requirements of full-circle labeling or
semi-circle labeling of round bottles. The labeling switching between
bottles is simple, and the labeling is flat without wrinkles to improve
the packaging quality.
6.This machine can be used with capping machine and bottle sorting
machine.
7.The components of each adjustment position are precisely matched, and
the height, width and width of the components can be easily adjusted
without the use of professional tools. The machine operation is simple
and simple.
|
|
Product display: |
 |
|
 |
 |
 |
|
Item include：LT-150
Fully Automatic Desktop Chain Plate Conveyor Round Bottle Fixed Point
High Speed Coding and Labeling Machine*1 |
|
Item Number: 160235 |
|
|
You can make order
with no worry.
Any concerns just feel free to let us know, we'll reply in 24 hours in
normal condition.
Handling Time: Shipping is usually made in 1-3 business days after
payments cleared. Orders are processed from Monday-Friday; Not on the
weekends & public holidays.
Warranty: 6 months' warranty for the machines, not for the consumables.
We stand behind our products all the item, so even if your warranty
period has expired, you can still seek for service or technical support
from us with low cost. |
