Home & Garden> Eyeglasses & lenses>
153003:110v Hand edger Manual lens edger
Unit:
set
Price:
C $185.00
Weight:
6.00kg
QTY:


Similar products

230102:Optical Color Alterable Lens Tester

153016:Eyeglasses Lens Hand Edger and Polisher 110v

153018:Optical Centering Machine

153062:Optical Lens Stress Tester

153065:Foldable Eyeglasses Display Case

https://topseller365.com/data/prd/152/252/QQ%E6%88%AA%E5%9B%BE20170725133912.jpg

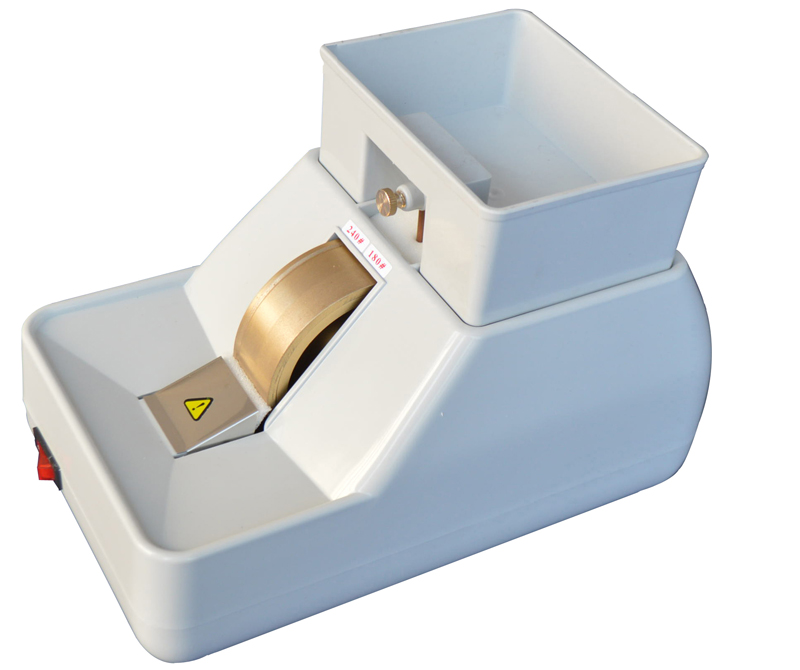

110v Hand edger Manual lens edger

https://topseller365.com/data/prd/153/003/5.jpg

Operation
When this machine is to be used, connect the hose  with the adaptor of the lower water can. The place the lower water can onto the  bottom of the machine (the water can run out either in the front or at the back)  and lead the drain pipe to the sewer tunnel.
Place the upper water can on the top of the machine and let in the clean water.  When the machine is used for the first time, take the sponge out from under the  water valve, put it into the water, press it with your hand and the put it back  in its original place after it absorbs enough water. Open the water valve and  let the water drip at 80-100 drops a minute. Then turn on the switch. The  machine is ready to be used.

If Model W  grinding wheel is chosen, the right side will be rough ground ,and the left side  fine ground. When Model WV grinding wheel is chosen the result with be the same,  but there is also a V-shaped slot to refine the lens
After the machine is used for a period of time, take the lower water can out and  clean it in case the draining hole should be blocked.

When the grinding wheel has been used for a  period of time, grinding fatigue will appear (failing to grind in). In this  case, use the oilstone stick to recondition the wheel. While this is being done,  open the water valve
The reversible button on the left side of the machine is a backward or forward  adjustor (not used often). When it is required to run in normal direction or  opposite direction, the chief power switch should be turned off or machine will  be damaged.

Unwrap the machine (From the Package)
1)Open the carton, and take the machine wrapped in  the foamed plastics.
2)Take the machine out carefully and place it on a big enough and quite stable  desk
https://topseller365.com/data/prd/153/003/6.jpg
https://topseller365.com/data/prd/153/003/3.jpg
Specifiction
https://topseller365.com/data/prd/153/003/7.jpg
Item Include(153003)
  • A set of 110v Hand edger Manual lens edger
