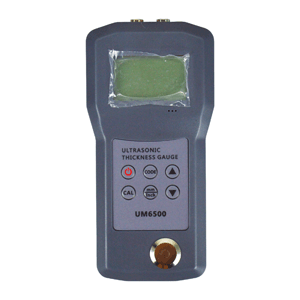

Handheld Digital
Ultrasonic Thickness Gauge |
| The intelligent ultrasonic thickness
meter adopts high performance and low power consumption
microprocessor technology, based on ultrasonic measuring
principle, can measure the thickness of the metal and other a
variety of materials, can be all kinds of pipeline and pressure
vessel in the production equipment to monitor, monitor them in
the process of using the degree of corrosion after thinning, can
accurately measure about all kinds of plates and all kinds of
machining parts.It can be widely used in petroleum, chemical,
metallurgy, shipbuilding, aviation, aerospace and other fields. |
| Model: |
UM6500 |
| Display: |
4.5 digits LCD with EL
backlight |
| Operating principle: |
ULTROSONIC |
| Measuring range(in
Steel): |
0.04"-9.64"(1.0mm-245mm) |
| Resolution: |
0.1mm |
| Accuracy(depends on
materials and conditions): |
±(0.5%H+0.1)mm |
| Units: |
Metric/Imperial unit
selectable |
| Battery specification: |
AAA Battery(Need four) |
| Battery indicator: |
Low battery indicator
|
| Operating conditions: |
0-+45℃(32℉-104℉)≤90%RH
|
| Materials measured: |
Only 11 types of
materials, including steel, cast iron, aluminum, red copper,
brass, zinc, quartz glass, polyethylene, PVC, gray cast iron,
nodular cast iron |
| Gross weight: |
1.87LB(0.85kg) |
|
Note: this product is
standard with 8mm probe, if you need other kinds of probe,
please contact us |
| Product Features & Advantages |
- High resolution measurement.
- Probe automatic zero calibration for system error correction.
- Status indicator of the coupling and low battery.
- Auto sleep and auto power off function to conserve battery
life.
- Humanized shape design, compact and portable, Can be used in
harsh environment. |
| Product Presentation & Details |
| UM6500 Thickness gauge *1 |
8mm probe *1 |
|
You can
make order with no worries.
Any concerns just feel free to let us know, we'll reply in 24
hours in normal condition.
Handling Time: Shipping is usually made in 1-3 business days
after payments cleared. Orders are processed from Monday-Friday;
Not on the weekends & public holidays.
Warranty: 6 months' warranty for the machines, not for the
consumables.
We stand behind our products all the item, so even if your
warranty period has expired, you can still seek for service or
technical support from us with low cost. |
|
